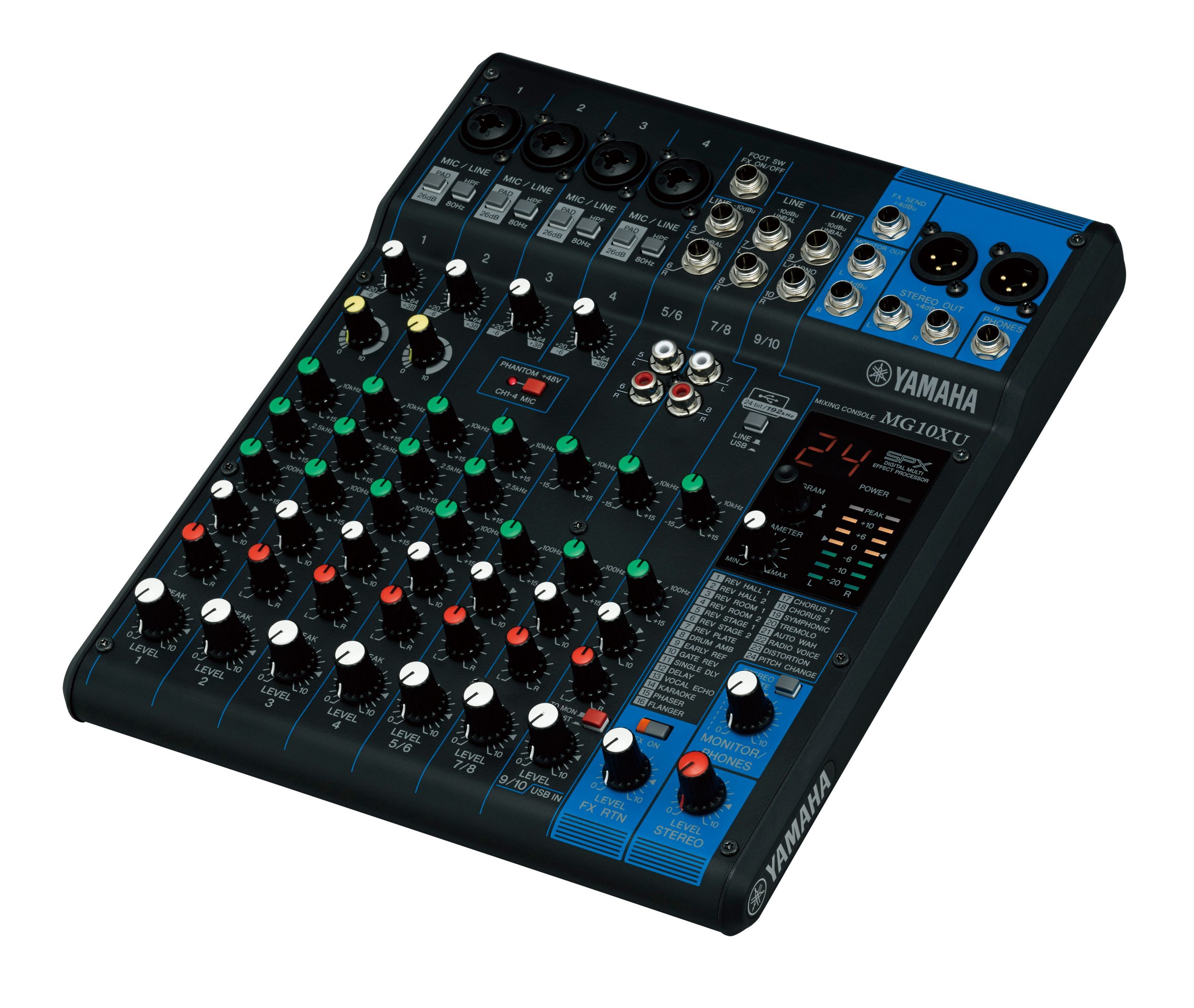

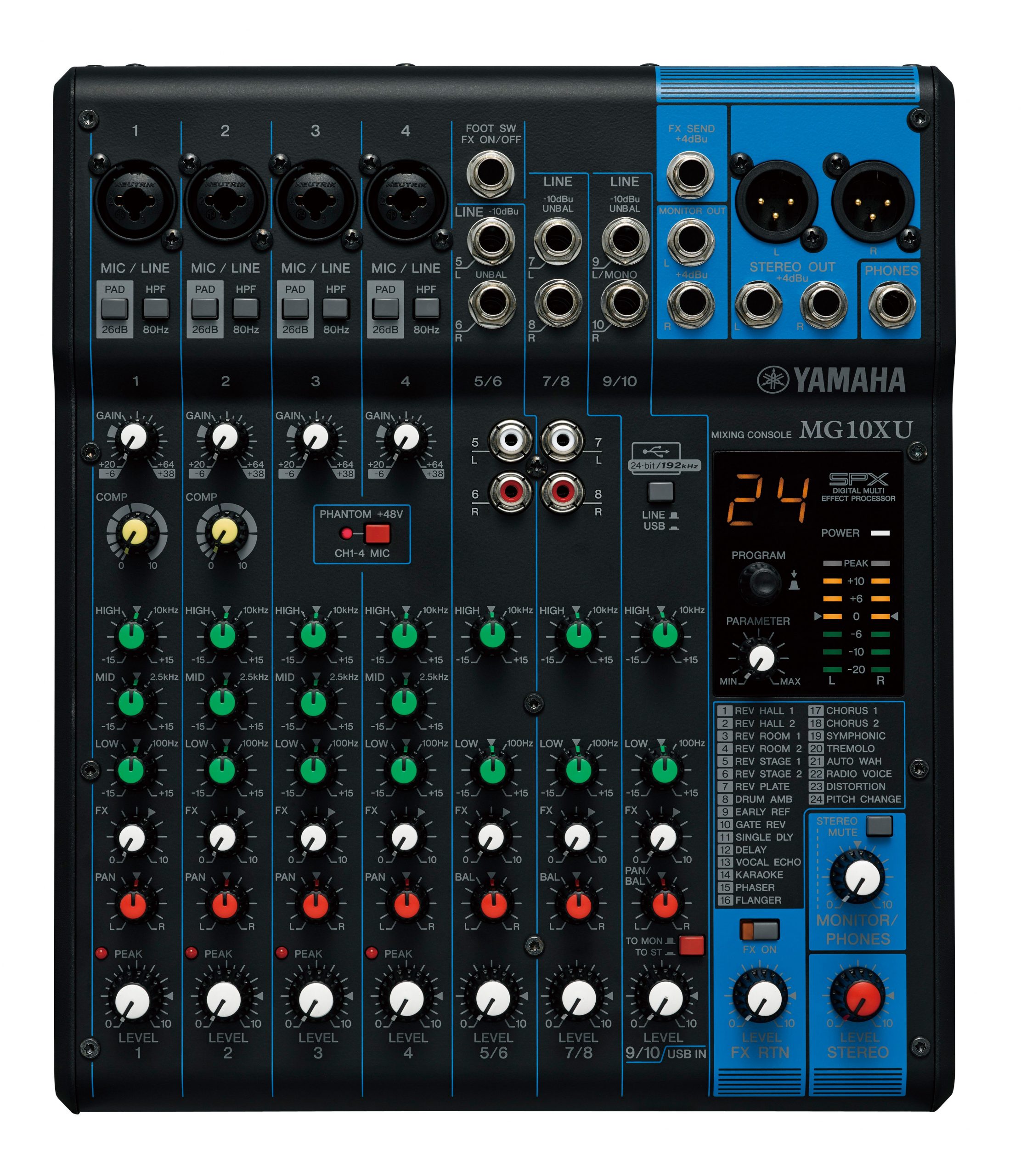

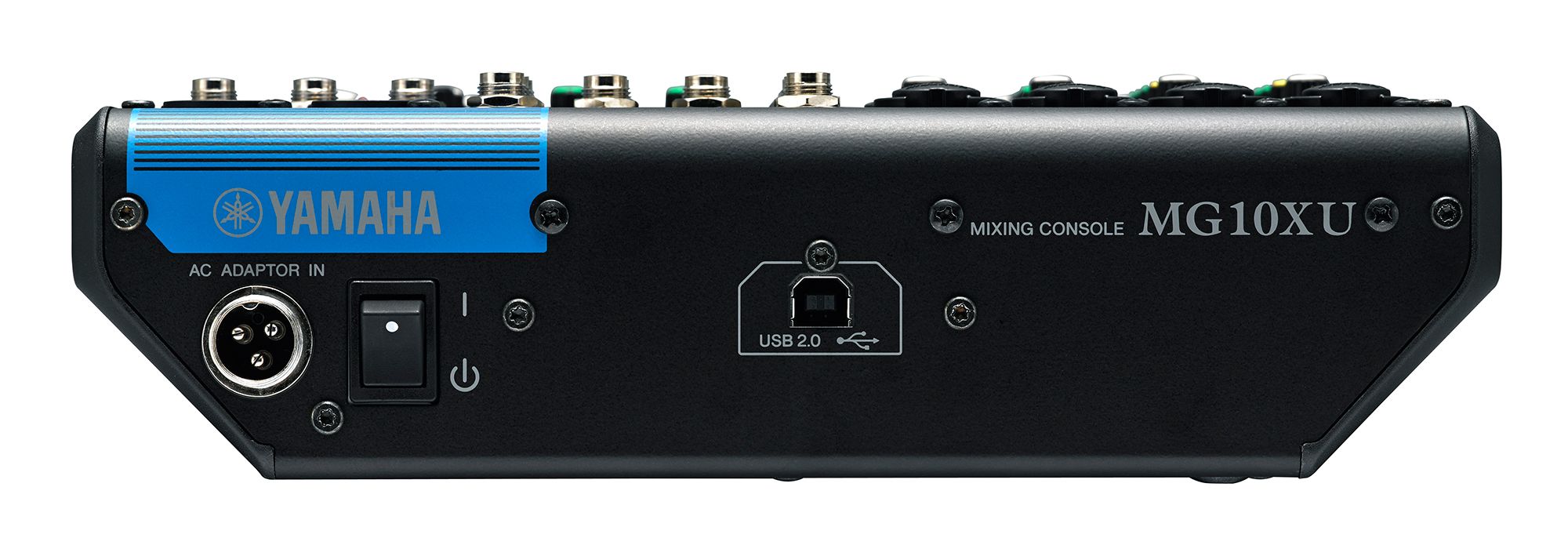

Yamaha MG10XU

The Yamaha MG10XU is a 10-channel analog mixer that combines Yamaha’s acclaimed D-PRE mic preamps, 1-knob compressors, SPX digital effects, and a high-resolution USB audio interface in a compact, rugged package. It’s a go-to choice for small live setups, home studios, podcasts, and streaming.

Highlights

• 10 channels: 4 mic/line combo inputs and 6 line inputs (3 stereo pairs)
• Four D-PRE mic preamps with inverted Darlington circuitry
• 1-knob compressors on the four mono channels
• SPX digital effects with 24 programs
• 24-bit/192 kHz 2-in/2-out USB audio interface
• +48 V phantom power, 26 dB pads, and Cubase AI download included

Yamaha MG10XU: Big Features in a Compact Mixer

The MG10XU packs features normally found on larger mixers into a 10-channel design. Yamaha’s D-PRE preamps deliver clean, natural sound with rich lows and smooth highs, making vocals and acoustic instruments sound polished. The 1-knob compressors on each mono channel make it easy to control dynamics on vocals and instruments without technical knowledge: just turn the knob until the level stays steady.

The SPX effects engine, derived from Yamaha’s legendary professional processors, offers 24 programs including reverbs, delays, and modulation effects to add space and polish to your mix.

MG10XU USB Recording and Streaming

The built-in USB interface records your mix at up to 24-bit/192 kHz and plays audio back from your computer, making the MG10XU perfect for podcasts, livestreams, and home recording. Cubase AI software is included as a download so you can start recording right away.

Setting Up the MG10XU

Connect microphones to the four combo inputs and enable phantom power for condenser mics. Use the 26 dB pad if a source is too hot. Set gain, then use the compressor knob to smooth out vocals. Add reverb with the effects send, choose a program, and adjust the return. For streaming, connect USB to your computer and select the MG10XU as your audio device.

What to Pair With the MG10XU

For small gigs, pair the MG10XU with powered speakers, vocal microphones, and stands. For podcasting, add two dynamic broadcast microphones, mic arms, and headphones. For streaming, a pair of studio monitors and a headphone amp round out the setup.

Using the MG10XU for Podcasts and Livestreams

The MG10XU is a popular choice for two-person podcasts and streams because it offers hands-on control that software mixers can’t match. Plug two microphones into channels 1 and 2, use the 1-knob compressors to keep both voices at a consistent level, and send the stereo mix to your computer over USB. Bring in music or a remote guest through the USB return or a stereo channel, and use the headphone output to monitor exactly what your audience hears. Physical faders make it easy to mute, duck, and balance sources in real time.

Yamaha MG10XU FAQ

Does the MG10XU need drivers? On Mac, it works with standard drivers. On Windows, install the Yamaha Steinberg USB driver for best performance.

Can I record each channel separately? No. The USB interface records a stereo mix. For multitrack recording, consider a mixer with multichannel USB.

Yamaha MG10XU Specifications at a Glance

• Channels: 10 (4 mono mic/line, 3 stereo line)
• Mic preamps: 4 D-PRE with +48 V phantom power
• Compressors: 1-knob on 4 mono channels
• Effects: SPX, 24 programs
• USB: 2-in/2-out, up to 24-bit/192 kHz
• Pad: 26 dB on mono channels
• Weight: 2.1 kg (4.6 lb)
• Software: Cubase AI (download)

Who Buys the Yamaha MG10XU

• Solo performers and small bands
• Podcasters and streamers
• Home studio musicians
• Churches, schools, and meeting rooms

Why Buy the Yamaha MG10XU From Metro Sound & Lighting

Metro Sound & Lighting isn’t a catalog-only retailer. We sell, install, and service pro audio in-house, so our team can help you build a small PA, podcast, or streaming setup around the MG10XU and support it after the sale. We offer B2B and integrator pricing for schools, churches, and venues.

Browse more options in our Analog Mixers category, or see the full specifications on the official Yamaha MG Series product page.
