Allen & Heath QU-32C

The Allen & Heath Qu-32C is the Chrome Edition of the Qu-32, a 38-in/28-out digital mixer that brings the workflow of a large console to a compact, approachable package. With a fader for every mono input, 32 recallable AnalogiQ mic preamps, a 7-inch touchscreen, and built-in multitrack recording, it’s a favorite of churches, venues, and production companies that need power without complexity.

Highlights

• 32 mono mic/line inputs with recallable AnalogiQ preamps, plus 3 stereo inputs
• 33 motorized faders, with a dedicated fader per mono input

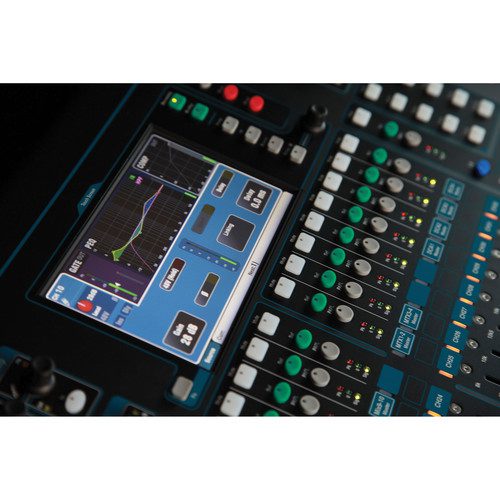

• 7-inch touchscreen for fast, intuitive navigation
• Up to 11 monitor mixes (4 mono, 7 stereo) plus groups and matrix outputs
• 4 FX engines, 4 DCA groups, and 4 mute groups
• Qu-Drive multitrack recording to USB drive and a dSNAKE port for remote stage boxes

Allen & Heath Qu-32C: Big-Console Workflow, Compact Size

Many compact digital mixers force engineers to page through layers to reach the channels they need. The Qu-32C gives every mono input its own motorized fader, so all 32 channels are right in front of you. That makes the Qu-32C easy for volunteer teams to learn and fast for experienced engineers to mix, with the touchscreen providing deep control over processing, routing, and effects.

Each input includes high-pass filtering, gate, parametric EQ, compression, and delay, and the four built-in FX engines provide high-quality reverbs, delays, and modulation effects.

Qu-32C Monitor Mixes, Recording, and Expansion

Up to 11 monitor mixes make the Qu-32C ideal for bands and worship teams with multiple wedges or in-ear systems. Qu-Drive records multitrack audio directly to a USB drive and plays it back for virtual soundchecks, with no computer required. The dSNAKE port connects Allen & Heath remote audio expanders, letting you place inputs on stage and run a single network cable to the mixer, and it’s compatible with the ME personal mixing system for individual musician mixes.

Qu-32C Tools for Better Mixes

Firmware features add professional tools to the Qu-32C, including automatic mic mixing for panel discussions and services with multiple speakers, enhanced monitor mix control, and a Spectrogram display that helps identify and eliminate feedback frequencies. Scenes let you save and recall complete mixes for different services, bands, or events.

What to Pair With the Qu-32C

A dSNAKE-compatible stage box puts inputs where the performers are and eliminates heavy analog snakes. Add an ME personal mixing system so musicians control their own monitors, a rack of wireless microphones, and powered speakers or amplifiers for the main PA. A flight case protects the console in transport.

Allen & Heath Qu-32C FAQ

What’s the difference between the Qu-32 and the Qu-32C? The Qu-32C is the Chrome Edition with a different cosmetic finish; the features are the same as the Qu-32.

Can I record without a computer? Yes. Qu-Drive records multitrack audio directly to a USB drive plugged into the console.

Allen & Heath Qu-32C Specifications at a Glance

• Configuration: 38 inputs / 28 outputs
• Mic preamps: 32 recallable AnalogiQ
• Stereo inputs: 3
• Faders: 33 motorized
• Display: 7-inch touchscreen
• Mixes: 4 mono + 7 stereo, plus LR, groups, and matrix
• FX engines: 4; DCA groups: 4; mute groups: 4
• Recording: Qu-Drive multitrack to USB drive
• Expansion: dSNAKE remote audio port

Who Buys the Allen & Heath Qu-32C

• Churches and houses of worship with full bands
• Live music venues and theaters
• Production and rental companies
• Schools and performing arts programs

Why Buy the Allen & Heath Qu-32C From Metro Sound & Lighting

Metro Sound & Lighting isn’t a catalog-only retailer. We design, install, and service sound systems in-house, so our team can plan a complete Qu-based system for your space, including stage boxes and personal monitoring, train your team, and support it after installation. We offer B2B and integrator pricing for churches, schools, and venues.

Browse more options in our Digital Mixers category, or see the full specifications on the official Allen & Heath Qu-32 product page.
