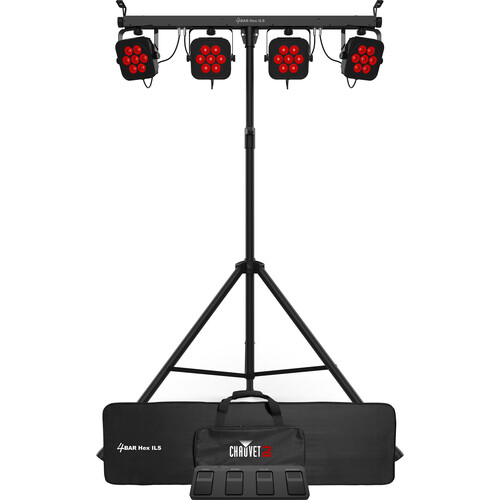

Chauvet 4 BAR HEX ILS

The Chauvet DJ 4BAR Hex ILS is a complete, all-in-one wash lighting system with four individually adjustable hex-color LED heads on a bar, a tripod stand, a footswitch, and carry bags. Its RGBAW+UV LEDs produce rich colors, natural whites, and UV effects, while ILS compatibility, D-Fi USB wireless support, and an optional IRC-6 remote make it easy to create coordinated shows for DJs, bands, and events.

Highlights

• 4 individually adjustable heads with hex-color RGBAW+UV LEDs
• 42 LEDs total; 16-degree beam angle
• ILS compatibility for coordinated shows with other ILS fixtures
• D-Fi USB compatible for wireless DMX or primary/secondary control
• Included footswitch; optional IRC-6 remote
• Tripod stand and carry bags included

Chauvet DJ 4BAR Hex ILS: Instant Room and Stage Wash

The 4BAR Hex ILS combines four powerful wash heads and a stand in one package, so you can light a stage, dance floor, or backdrop in minutes. Six-in-one hex LEDs blend red, green, blue, amber, white, and UV for a broad color palette and smooth, natural color temperatures.

ILS Wireless Control

Chauvet’s Intelligent Lighting System (ILS) lets the 4BAR Hex ILS work with other ILS fixtures for coordinated programs, while D-Fi USB compatibility adds wireless DMX or primary/secondary control without running cables.

Setting Up the 4BAR Hex ILS

Set up the tripod, mount the bar, and aim each head toward your stage or room. Connect power, then use the included footswitch to step through programs, add a D-Fi USB dongle for wireless DMX, or connect a DMX controller. Choose 6, 8, or 27-channel DMX modes for simple or detailed control.

What to Pair With the 4BAR Hex ILS

Pair the 4BAR Hex ILS with a Chauvet D-Fi USB dongle, the IRC-6 remote, a DMX controller, ILS-compatible effects lights, and sandbags for the stand.

Flexible Mounting

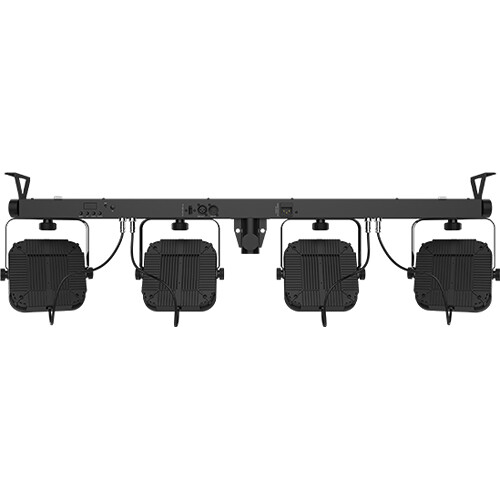

Use the included tripod stand for a classic portable setup, or remove the bar and mount it to truss using the built-in bolts for permanent installs.

Easy Firmware Updates

A built-in USB port lets you update the fixture’s software, keeping it compatible with the latest ILS features.

Built for Mobile Entertainers

Carry bags and a quick setup make the 4BAR Hex ILS ideal for weddings, parties, school dances, and small venues that need dependable, colorful wash lighting.

Chauvet DJ 4BAR Hex ILS FAQ

Does it include a stand? Yes. A tripod stand, footswitch, and carry bags are included.

Can I control it wirelessly? Yes, with a D-Fi USB dongle or an IRC-6 remote.

Chauvet DJ 4BAR Hex ILS Specifications at a Glance

• LEDs: 42 hex-color RGBAW+UV
• Heads: 4, individually adjustable
• Beam angle: 16 degrees
• DMX channels: 6, 8, or 27
• Power: 97W at 120V
• Weight: 12.2 lb (5.5 kg)
• Stand height: up to 7 ft 4 in

Who Buys the Chauvet DJ 4BAR Hex ILS

• Mobile DJs
• Bands and performers
• Churches and schools
• Event and rental companies
