ADJ Dotz T-Par System

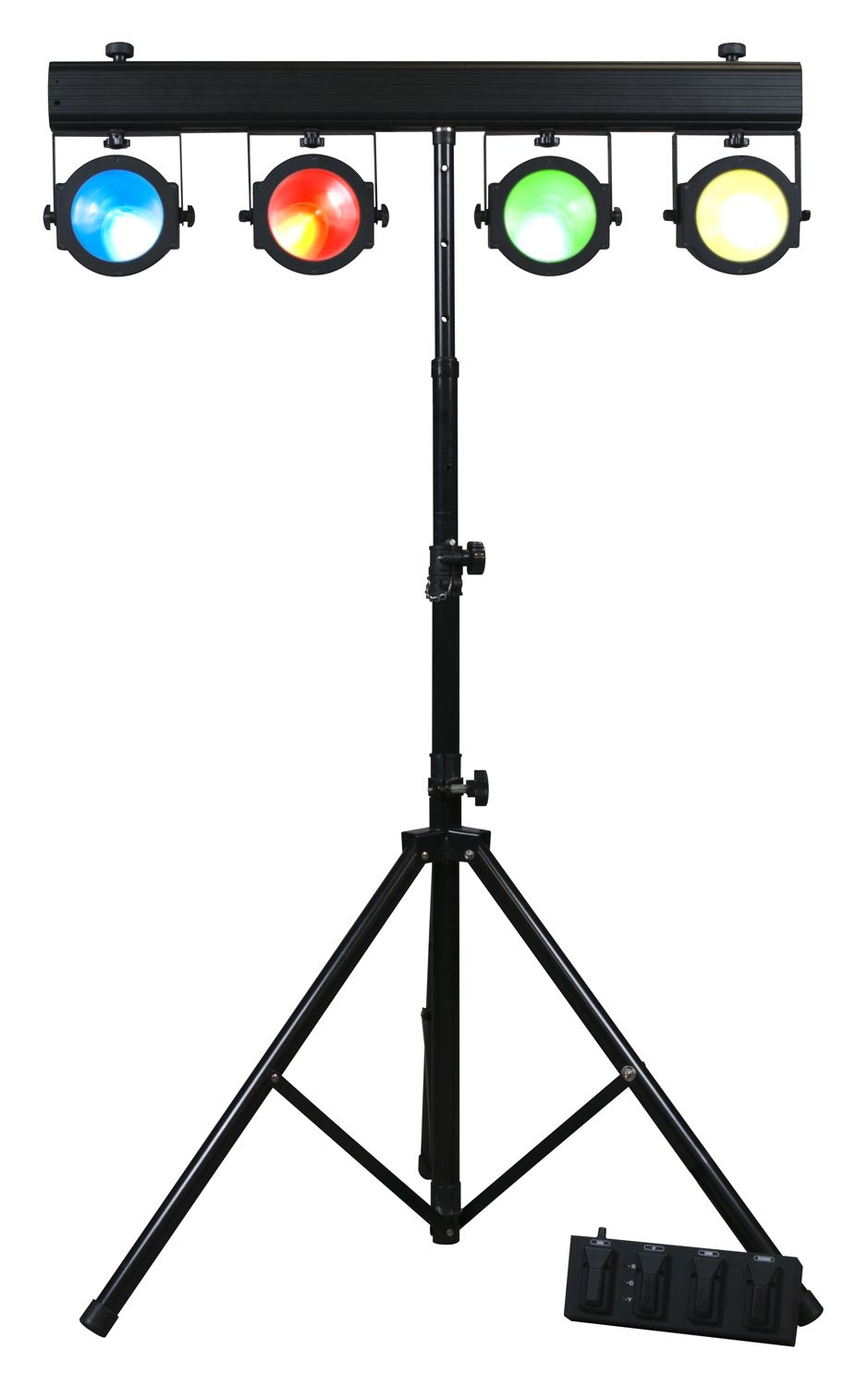

The ADJ Dotz TPar System is an all-in-one LED wash lighting package built around four Dotz TPar fixtures, each with a 30 W tri-color COB LED. With a lighting stand, foot controller, wireless remote, and carry bags included, it gives DJs, bands, and event professionals smooth, bright color mixing and a complete portable light show in one purchase.

Highlights

• Four par fixtures, each with one 30 W tri-color (RGB) COB LED
• Smooth color mixing with no multicolor shadows
• Wide 90-degree beam, with 25-degree lens kit included
• Auto, sound-active, built-in programs, dimmer, and full DMX control
• Includes lighting stand, foot controller, wireless remote, and carry bags
• Multi-voltage operation, 144 W maximum for the full system

ADJ Dotz TPar System: COB Color for Any Event

COB (chip-on-board) LEDs combine red, green, and blue diodes into a single source, so colors mix inside the fixture and project as one smooth, even color. Compared to traditional multi-LED pars, the Dotz TPar produces cleaner washes without the colored fringes that can appear on walls and performers. The wide 90-degree beam covers a lot of area, and the included 25-degree lenses tighten the beam for more punch at a distance.

Dotz TPar System Control Options

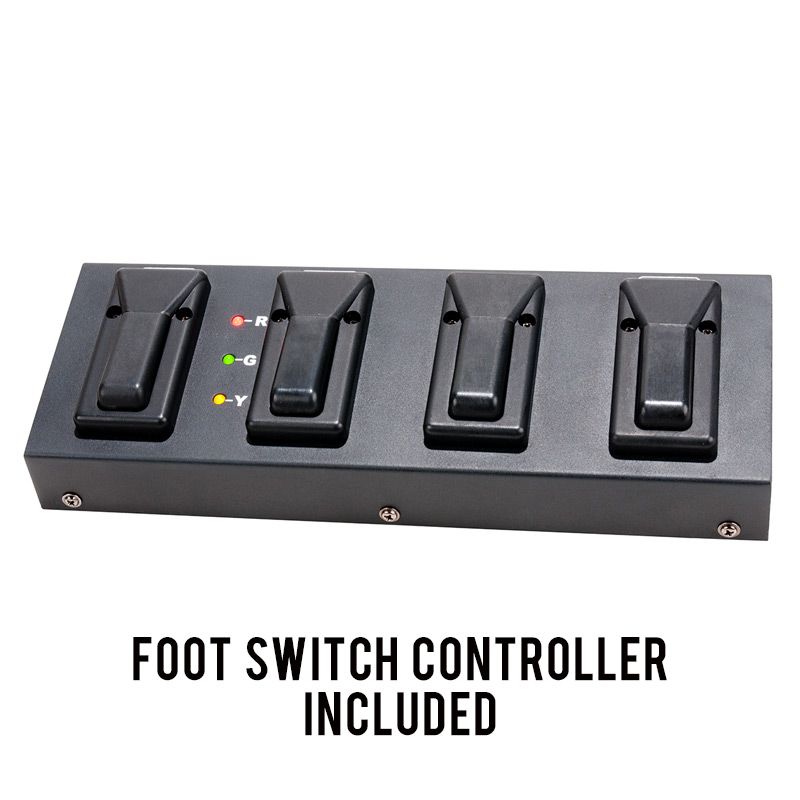

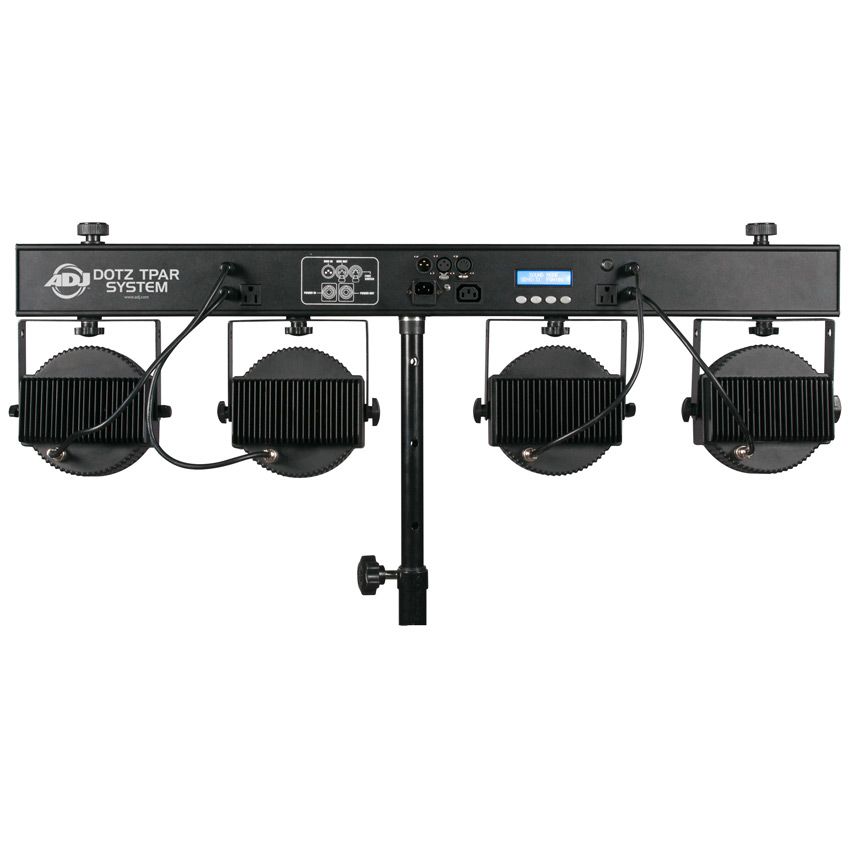

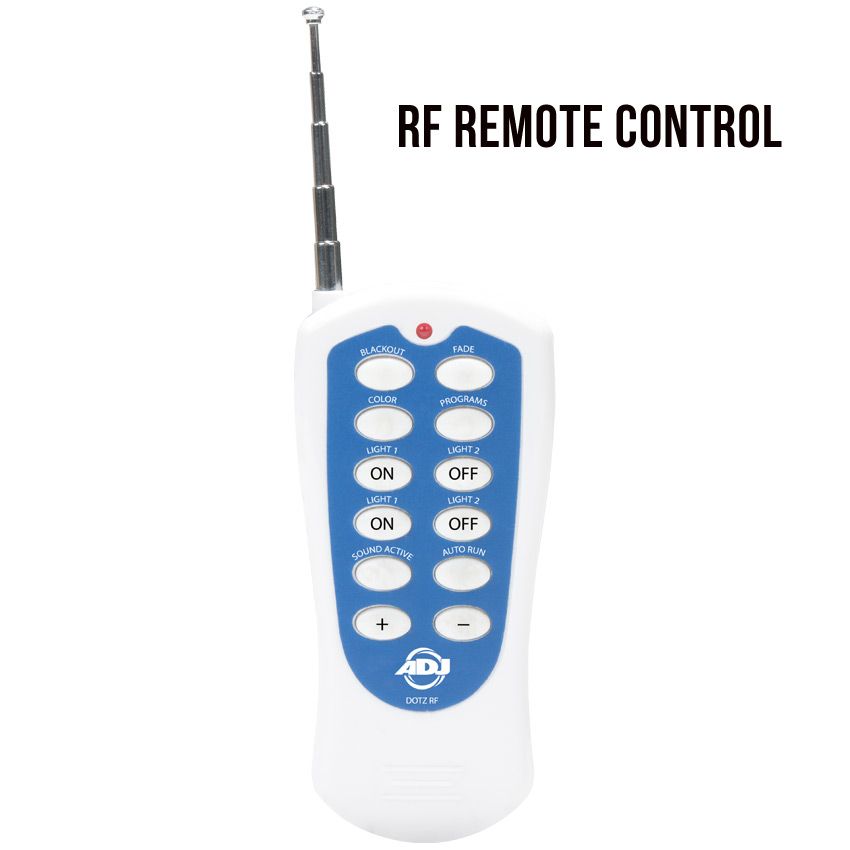

The system is ready to go out of the box. Use the foot controller to change modes, trigger blackouts, and switch programs hands-free while you perform. The wireless remote lets you control the show from across the room. For full control, connect a DMX controller or lighting software through the 3-pin DMX in and out connectors, with multiple channel modes for simple or detailed programming.

Setting Up the Dotz TPar System

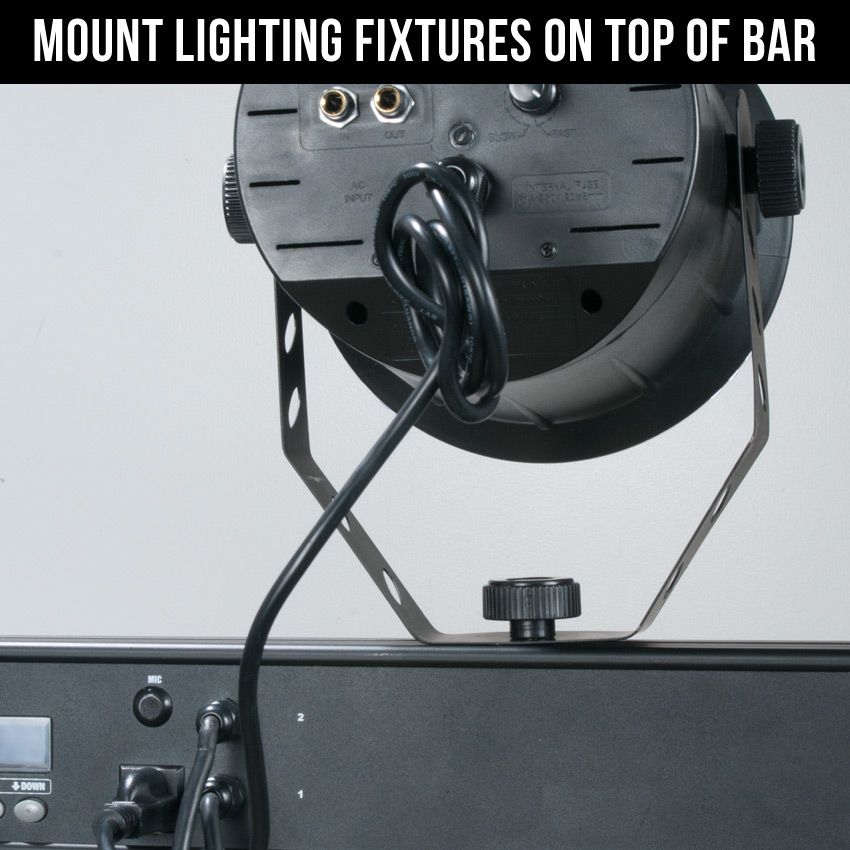

Assemble the stand, mount the bar with the four fixtures, and connect power. Aim the fixtures at the stage or dance floor, crossing the beams from the sides for even coverage. Choose sound-active mode for parties, auto mode for hands-off shows, or use the foot controller during a performance. Pack everything into the included bags when the night is over.

What to Pair With the Dotz TPar System

Add a haze machine to make the color beams visible in the air, or pair the TPar system with moving heads and effect lights for a bigger show. A simple DMX controller unlocks custom programming, and a second TPar system on the other side of the stage creates a symmetrical look.

ADJ Dotz TPar System FAQ

Do I need a DMX controller? No. Built-in auto, sound-active, and program modes, plus the foot controller and wireless remote, run a full show without one. DMX is available for more control.

What’s the advantage of COB LEDs? COB LEDs mix colors at the source, giving smoother, more even washes than fixtures with separate colored LEDs.

ADJ Dotz TPar System Specifications at a Glance

• Fixtures: 4 Dotz TPar
• LED: 1 x 30 W tri-color COB per fixture, rated about 50,000 hours
• Beam angle: 90 degrees (25-degree lens kit included)
• Control: auto, sound-active, programs, dimmer, DMX
• DMX connectors: 3-pin in/out
• Power: multi-voltage 100-240 V, 144 W max (system)
• Included: stand, foot controller, wireless remote, stand bag, soft case

Who Buys the ADJ Dotz TPar System

• Mobile DJs and wedding entertainers
• Bands and solo performers
• Churches and schools lighting stages and events
• Event companies needing quick, portable wash lighting

Why Buy the ADJ Dotz TPar System From Metro Sound & Lighting

Metro Sound & Lighting isn’t a catalog-only retailer. We sell, install, and service lighting systems in-house, so our team can help you design a light show around the Dotz TPar System, add control and effects, and support your gear after the sale. We offer B2B and integrator pricing for churches, schools, and venues.

Browse more options in our Lighting Systems category, or see the full specifications on the official ADJ Dotz TPar System product page.
