Yamaha DXL1K

The Yamaha DXL1K is a compact, powerful portable column PA that pairs a 12-inch subwoofer with a J-curve line array of ten 1.5-inch drivers. Its 1100-watt Class-D amplifier reaches 125 dB SPL with bass down to 37 Hz, while ultra-wide 170-degree horizontal coverage spreads even sound across the whole audience. It sets up in about a minute with no cables between the sub and array, making it ideal for bands, DJs, presenters, and houses of worship.

Highlights

• 1100W Class-D amplifier with 125 dB max SPL
• 12-inch subwoofer with Twisted Flare Port for clean bass
• J-curve array of ten 1.5-inch drivers
• 170 x 30 degree coverage; 37 Hz-20 kHz range
• 2 combo inputs plus XLR link in and out
• Links with a STAGEPAS 1K mkII; fitted cover included

Yamaha DXL1K: Wide, Even Coverage From a Slim Array

The DXL1K’s ten small drivers are arranged in a J-shaped curve, so the array projects consistent, clear sound from the front row to the back of the room. With 170 degrees of horizontal coverage, more of the audience hears the same balanced mix, without the hot spots of traditional point-source speakers.

Big Bass From a Compact Sub

The 12-inch subwoofer sits in an ultra-compact ABS cabinet with a durable polyurea coating. Yamaha’s Twisted Flare Port reduces the port noise that often affects small bass-reflex subs, delivering deep, powerful bass without distortion, even at high volume.

Setting Up the DXL1K

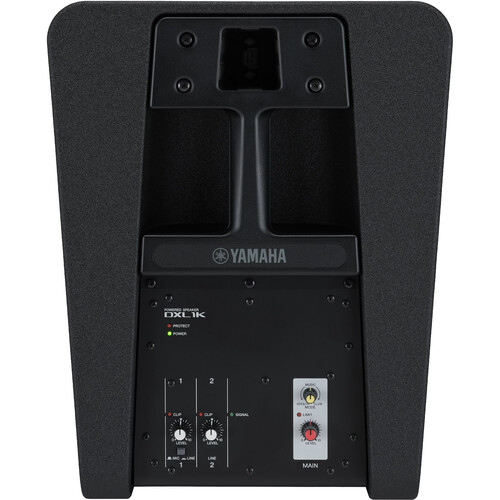

Insert the two spacers into the subwoofer, place the line array on top, and plug in power; no cables or stands are needed between the sections. Connect a microphone or mixer to Input 1 (mic/line) and a line source to Input 2, then use the link output to connect a second system. Setup takes one to two minutes.

What to Pair With the DXL1K

Pair the DXL1K with a compact mixer, vocal microphones, XLR cables, a Yamaha STAGEPAS 1K mkII for stereo or wider coverage, and the optional DL-SP1K dolly for easy transport.

Expand With STAGEPAS 1K mkII

Link the DXL1K with a STAGEPAS 1K mkII to create a stereo system, increase coverage and output, or expand your inputs to a maximum of five mono inputs and one stereo input across the linked systems.

Portable and Protected

The complete system weighs about 50 pounds, and the included fitted cover protects the subwoofer while providing pouches to store the spacers and line array, so everything travels together.

Placement Tips

Place the DXL1K slightly in front of and to the side of performers to reduce feedback, and aim the array toward the center of the audience. In wide rooms, its 170-degree coverage often lets a single system do the work of two point-source speakers.

Yamaha DXL1K FAQ

Do I need cables between the sub and array? No. The spacers carry the signal, so no extra cables are needed.

Can I link two systems? Yes. Use the XLR link outputs to connect another DXL1K or a STAGEPAS 1K mkII.

Yamaha DXL1K Specifications at a Glance

• Amplifier: 1100W Class-D
• Drivers: 12-inch sub, ten 1.5-inch line array drivers
• Frequency range: 37 Hz-20 kHz (-10 dB)
• Coverage: 170 x 30 degrees
• Max SPL: 125 dB (1 m)
• Inputs: 1 combo mic/line, 1 combo line, XLR link in/out
• Weight: about 50.7 lbs (23 kg) system

Who Buys the Yamaha DXL1K

• Bands and solo performers
• Mobile DJs
• Churches and schools
• Corporate and event AV

Why Buy the Yamaha DXL1K From Metro Sound & Lighting

Metro Sound & Lighting isn’t a catalog-only retailer. We design, install, and service sound systems in-house, so our team can help you choose the right portable PA and support it after the sale. We offer B2B and integrator pricing for churches, schools, and venues.

Browse more options in our Column Arrays category, or see the full specifications on the official Yamaha DXL1K product page.
