Electro-Voice ELX20012SP

The Electro-Voice ELX200-12SP is a compact 12-inch powered subwoofer that adds deep, punchy low end to live sound, DJ, and mobile PA systems. 1200W of Class-D amplification drives a 12-inch woofer for a 41-165 Hz frequency range, and EV’s QuickSmartDSP and Bluetooth control make it easy to integrate with ELX200 tops or other full-range speakers.

Highlights

• 1200W Class-D amplification
• 12-inch woofer; 41-165 Hz frequency range
• Adjustable low-pass crossover at 80, 100, 120, or 150 Hz
• QuickSmartDSP: 3 setup presets and 5 user presets with metering
• Two XLR-1/4-inch combo inputs and two XLR link outputs
• Bluetooth control; M20 socket for pole-mounting a top speaker

Electro-Voice ELX200-12SP: Compact, Powerful Low End

A 12-inch subwoofer is the sweet spot for many small to mid-size PA systems: it adds the low-end weight that full-range speakers can’t deliver on their own, but stays compact enough to fit in a car and carry into a venue. The ELX200-12SP’s 1200W amplifier and 12-inch woofer extend your system down to 41 Hz, adding punch to kick drums, bass guitar, and dance music.

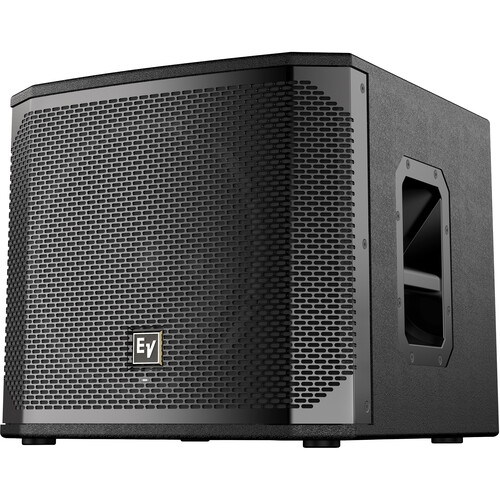

Its plywood enclosure and steel grille stand up to the road, and built-in handles make it easy to load in and out.

Simple System Integration

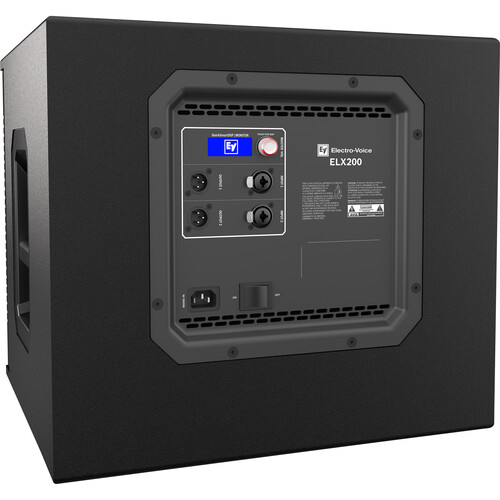

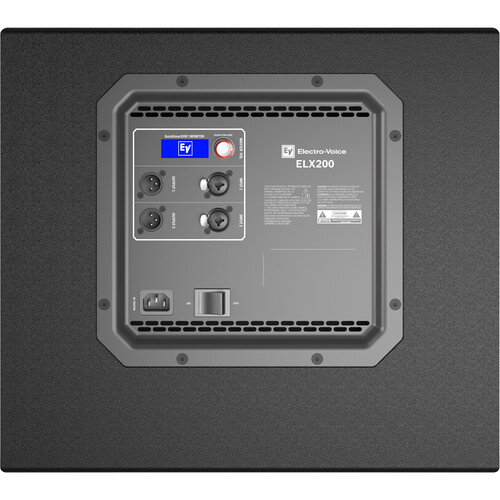

Connect your mixer’s outputs to the two combo inputs, then use the two XLR link outputs to feed your full-range speakers. The adjustable low-pass filter lets you choose 80, 100, 120, or 150 Hz to match your tops, and QuickSmartDSP presets get you to a balanced sound fast. Mount a top speaker directly above the sub using the M20 threaded socket and a speaker pole.

Setting Up the ELX200-12SP

Place the subwoofer on the floor, near a wall or front edge of the stage for maximum low-end output. Connect your mixer’s left and right outputs to the sub’s inputs, then link outputs to your tops. Select a preset, set the crossover to match your top speakers, and adjust the sub level until it blends smoothly with the rest of the system.

What to Pair With the ELX200-12SP

Pair the ELX200-12SP with ELX200-10P or ELX200-12P full-range speakers, an M20 speaker pole, a padded subwoofer cover, and quality XLR cables. Two subs and two tops form a powerful stereo system for bands and DJs.

Choosing a Crossover Frequency

The crossover frequency determines where the sub hands off to the full-range speakers. A lower setting like 80 or 100 Hz works well with 12-inch or 15-inch tops that have strong low end. Higher settings like 120 or 150 Hz are better with smaller 8-inch or 10-inch tops. Choose the setting that gives a smooth, even transition with no gap or boom.

Electro-Voice ELX200-12SP FAQ

Can I mount a speaker on top? Yes. The top-panel M20 threaded socket accepts a speaker pole.

Can it pass a signal to my tops? Yes. Two XLR link outputs send signal to full-range speakers.

Electro-Voice ELX200-12SP Specifications at a Glance

• Type: 12-inch powered subwoofer
• Amplifier: 1200W Class-D
• Frequency range: 41-165 Hz
• Low-pass: 80 / 100 / 120 / 150 Hz
• Inputs: 2 XLR-1/4-inch combo
• Outputs: 2 XLR link
• DSP: 3 setup presets, 5 user presets, metering; Bluetooth control
• Enclosure: plywood with steel grille; M20 pole socket

Who Buys the Electro-Voice ELX200-12SP

• Mobile DJs
• Bands and musicians
• Rental and production companies
• Churches and small venues

Why Buy the Electro-Voice ELX200-12SP From Metro Sound & Lighting

Metro Sound & Lighting isn’t a catalog-only retailer. We design, install, and service sound systems in-house, so our team can help you build a complete ELX200 system and support it after the sale. We offer B2B and integrator pricing for churches, schools, and venues.

Browse more options in our Powered Subwoofers category, or see the full specifications on the official Electro-Voice ELX200-12SP product page.
