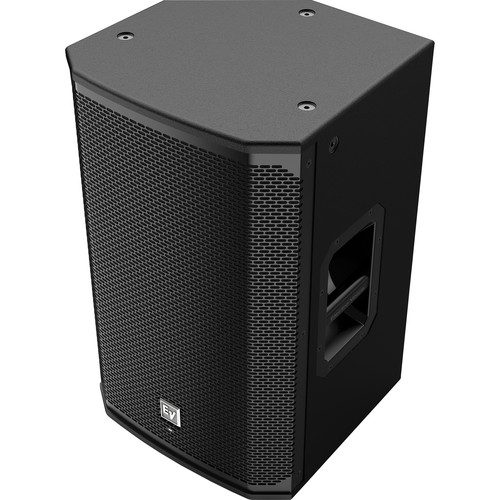

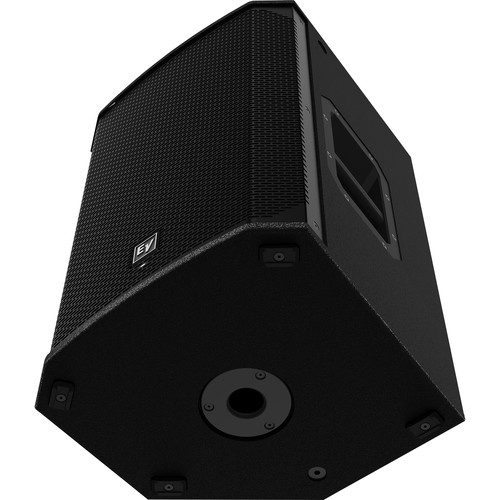

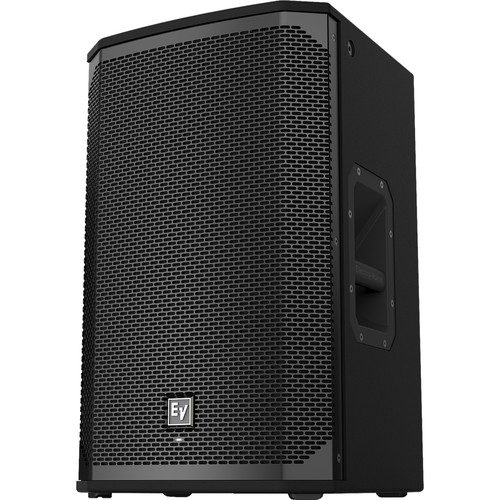

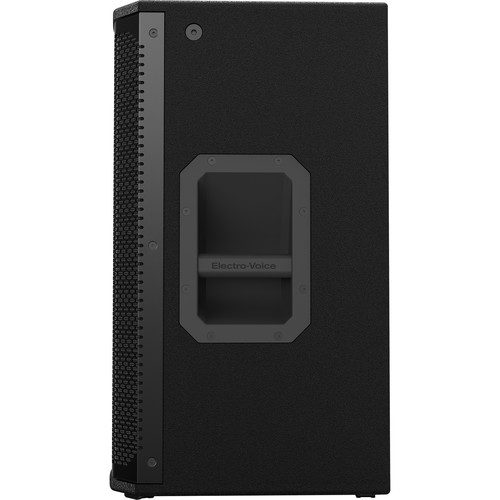

Electrovoice EKX12P

The Electro-Voice EKX-12P is a 12-inch two-way powered loudspeaker that brings EV’s professional sound to performers, DJs, and venues. A 1500 W amplifier drives a 12-inch EVS-12M woofer and a DH-1M titanium compression driver, delivering up to 132 dB of clear, punchy sound with flexible DSP and a rugged wood enclosure.

Highlights

• 1500 W amplification
• 12-inch EVS-12M woofer and DH-1M 1-inch titanium compression driver
• 132 dB maximum SPL
• 90° x 60° coverage with EV’s Signal Synchronized Transducers waveguide
• DSP with Music, Live, Speech, and Club presets plus five user presets
• Two XLR/TRS combo inputs, stereo RCA input, and XLR link output

Electro-Voice EKX-12P: Professional Power in a 12-Inch Speaker

The EKX-12P is built for working musicians and DJs who need a speaker that sounds great at any volume and survives regular use. The 12-inch woofer delivers tight, punchy low end, while the titanium compression driver produces clear, detailed highs that keep vocals intelligible across the room. EV’s patented SST waveguide shapes the 90 by 60 degree coverage for consistent sound throughout the audience.

The rugged wood enclosure is built for the road, and the speaker can be pole-mounted, placed on a stand, or used on its side as a stage monitor.

EKX-12P DSP and Presets

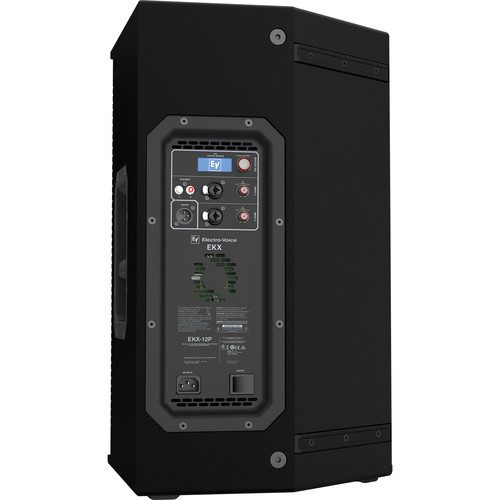

The onboard DSP makes it easy to get the right sound for each application. Choose Music for full-range playback, Live for bands and performers, Speech for presentations, or Club for DJ sets with extra punch. Save your own settings to five user presets, all controlled from a simple LCD and single-knob interface on the rear panel.

Setting Up the EKX-12P

For main PA use, mount the speakers on stands so the high-frequency driver sits above the audience’s heads, angled slightly toward the center of the room. Choose the preset that matches your application, set the input level, and link a second speaker through the XLR output. When pairing with a subwoofer, use the subwoofer’s high-pass output to feed the EKX-12P for a louder, cleaner system.

What to Pair With the EKX-12P

For dance music and larger rooms, add an EKX powered subwoofer for deep low end. A compact mixer gives you control over multiple microphones and instruments, and sturdy speaker stands and padded covers protect your investment. Wireless microphones round out a complete system for presenters and singers.

Electro-Voice EKX-12P FAQ

Can I use the EKX-12P as a floor monitor? Yes. Its enclosure is designed to be used on its side as a stage wedge, making it a versatile choice for bands.

Do I need a subwoofer? The EKX-12P reaches down to 50 Hz (-10 dB), which is enough for many applications. Add a subwoofer for DJ sets and larger rooms.

Electro-Voice EKX-12P Specifications at a Glance

• Amplifier: 1500 W
• Drivers: EVS-12M 12-inch woofer, DH-1M 1-inch titanium compression driver
• Maximum SPL: 132 dB
• Frequency response: 60 Hz to 18 kHz (-3 dB); 50 Hz to 20 kHz (-10 dB)
• Coverage: 90° x 60°
• Crossover: 1.7 kHz
• DSP presets: Music, Live, Speech, Club, plus 5 user presets
• Inputs: 2 XLR/TRS combo, 1 stereo RCA; XLR link output

Who Buys the Electro-Voice EKX-12P

• Bands and live performers
• Mobile DJs and event entertainers
• Churches, schools, and corporate venues
• Rental companies building speaker inventory

Why Buy the Electro-Voice EKX-12P From Metro Sound & Lighting

Metro Sound & Lighting isn’t a catalog-only retailer. We sell, install, and service pro audio in-house, so our team can help you build a complete EV system with the right subwoofers, mixer, and microphones, and support it after the sale. We design sound systems for churches, schools, and venues and offer B2B and integrator pricing on volume orders.

Browse more options in our Powered Speakers category, or see the full specifications on the official Electro-Voice EKX-12P product page.
