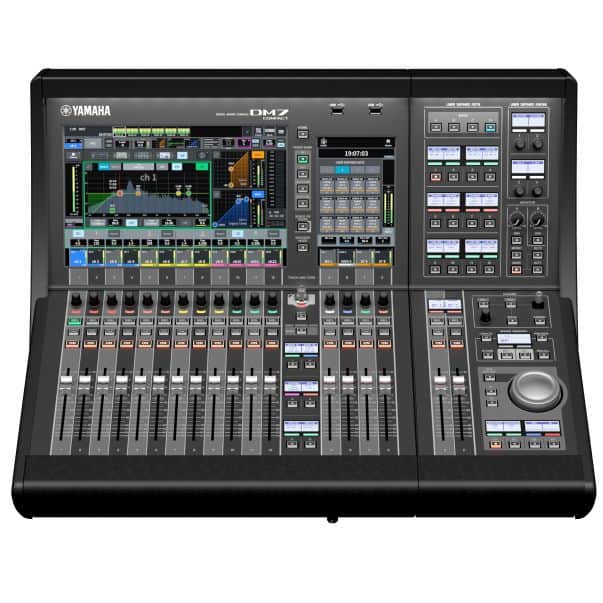

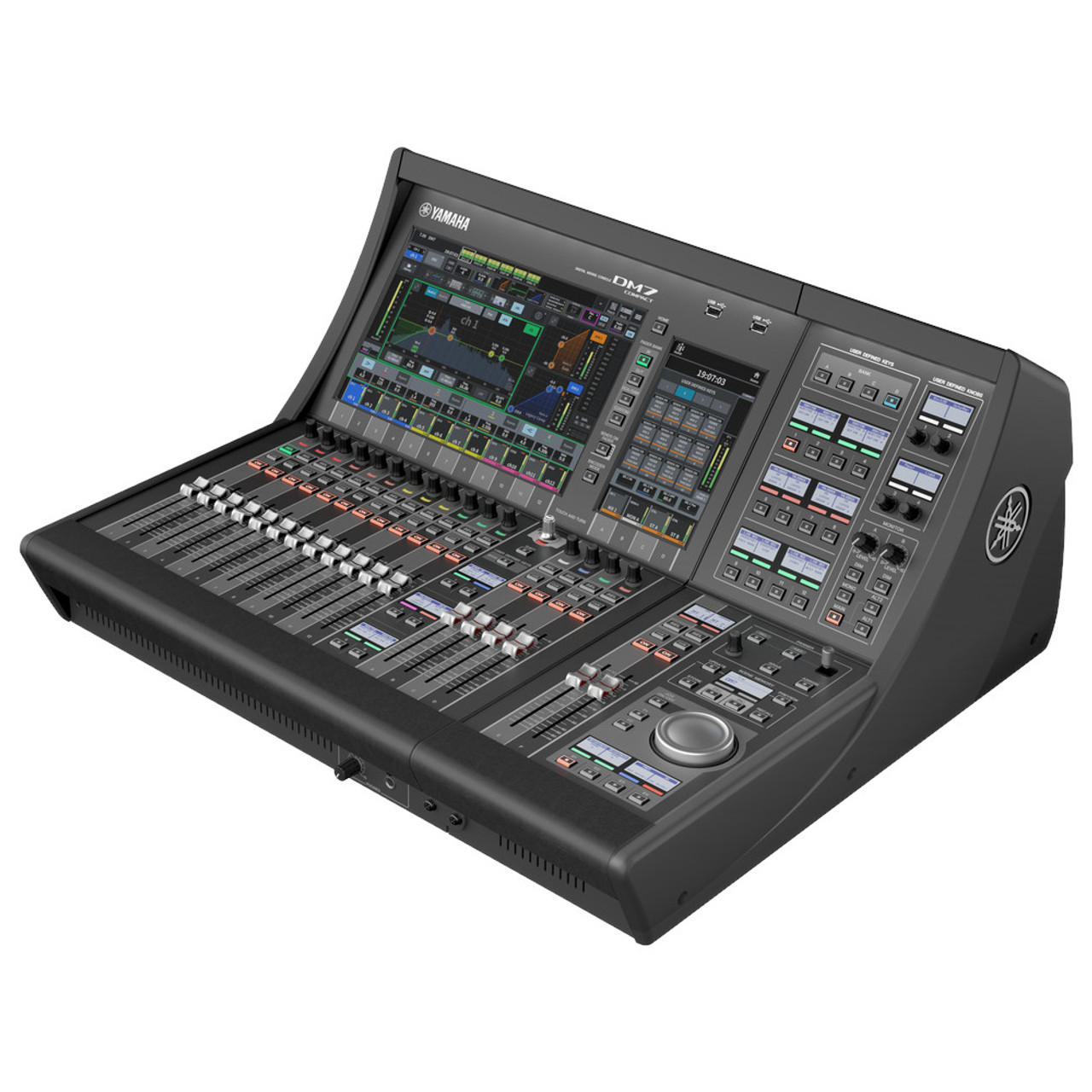

Yamaha DM7C-EX 72-channel Digital Mixer with CTL-DM7 Expansion

The Yamaha DM7C-EX pairs the DM7 Compact 72-channel digital console with the CTL-DM7 control expansion, giving engineers more hands-on control for fast-paced shows. The DM7C brings Rivage PM-derived processing, 12.1-inch and 7-inch touchscreens, 16 motorized faders, 144×144 Dante, and an 18×18 USB interface, while the CTL-DM7 adds two assignable faders, a programmable jog wheel, four banks of 12 user-defined knobs, and dedicated scene, monitor, and immersive controls.

Highlights

• DM7 Compact console with 72 mono inputs, 48 mix and 12 matrix buses
• 12.1-inch and 7-inch multitouch screens; 16 motorized faders
• CTL-DM7 expansion: 2 faders, jog wheel, 4 banks of 12 user knobs
• Dedicated scene, monitor, immersive, and surround controls

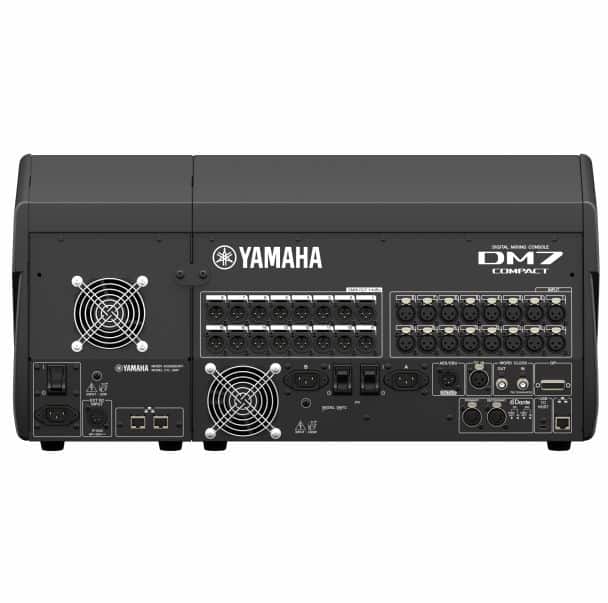

• 16 analog in/out, 144×144 Dante, 18×18 USB
• Split Mode, Assist functions, and redundant power

Yamaha DM7C-EX: More Control at Your Fingertips

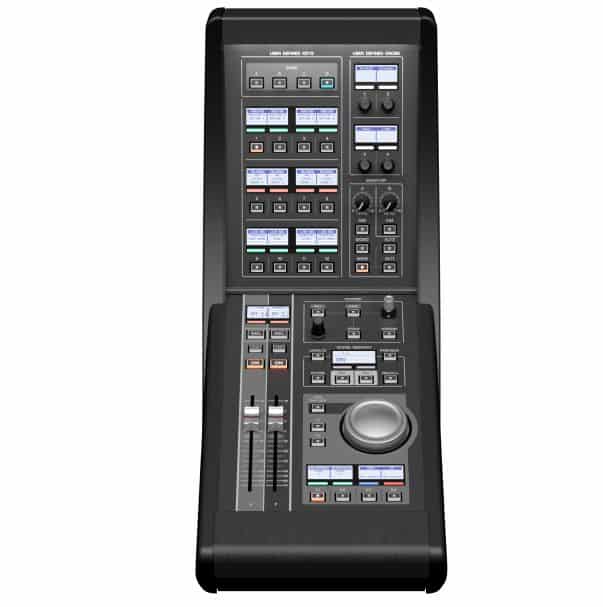

The CTL-DM7 sits beside the DM7C and puts frequently used parameters on physical knobs, so you can adjust EQ, dynamics, and effects, or recall scenes, without diving through screens. Four banks of 12 user-defined knobs, two extra faders, and a programmable jog wheel speed up theater cue work, broadcast, and busy live shows.

The DM7 Compact Console

The DM7C delivers 72 mono input channels, 48 mix buses, 12 matrices, and 2 stereo buses, with 64 premium processing slots, 16 Yamaha FX slots, and four inserts per channel, all at 96 kHz. Its interface draws on the Rivage PM series for clear, efficient operation.

Setting Up the DM7C-EX

Connect the CTL-DM7 to the console, then connect local sources to the 16 analog inputs or add Yamaha Rio or Tio Dante stage boxes. Patch outputs to your PA and monitors, assign your most-used parameters to the CTL-DM7 knobs, and save scenes for each show.

What to Pair With the DM7C-EX

Pair the DM7C-EX with Yamaha Rio or Tio Dante stage boxes, Cat5e/Cat6 cable, a road case, and powered speakers and monitors.

Split Mode and Assist

Split Mode lets one engineer run two independent mixes, such as front of house and monitors or front of house and broadcast, and Assist functions help speed setup when soundcheck time is short.

Networking, Recording, and Expansion

144×144 Dante connects stage boxes, recording rigs, and other consoles, the 18×18 USB interface records and plays back multitrack audio, and DAW Remote turns the console into a controller for your workstation. A PY slot and AES/EBU output add flexibility, and a redundant power supply protects critical events.

Ideal for Theater and Broadcast

With dedicated scene and monitor controls on the CTL-DM7, the DM7C-EX is especially suited to theater productions with many cues and broadcast environments that demand quick, precise adjustments.

Yamaha DM7C-EX FAQ

What does the CTL-DM7 add? Two faders, a jog wheel, four banks of 12 user-defined knobs, and scene, monitor, immersive, and surround controls.

Does it support Dante? Yes, with 144 inputs and 144 outputs.

Yamaha DM7C-EX Specifications at a Glance

• Console: DM7 Compact, 72 mono inputs
• Buses: 48 mix, 12 matrix, 2 stereo
• Displays: 12.1-inch and 7-inch multitouch
• Faders: 16 on console, plus 2 on CTL-DM7
• Analog I/O: 16 in / 16 out
• Dante: 144 x 144; USB: 18 x 18
• Console weight: 36.4 lbs (16.5 kg)

Who Buys the Yamaha DM7C-EX

• Theater and performing arts engineers
• Broadcast and streaming productions
• Live sound and touring companies
• Churches and corporate AV

Why Buy the Yamaha DM7C-EX From Metro Sound & Lighting

Metro Sound & Lighting isn’t a catalog-only retailer. We design, install, and service sound systems in-house, so our team can design your DM7 and Dante system and support it after the sale. We offer B2B and integrator pricing for churches, schools, and venues. Contact us for current pricing and availability.
