Sennheiser EW-D ASA

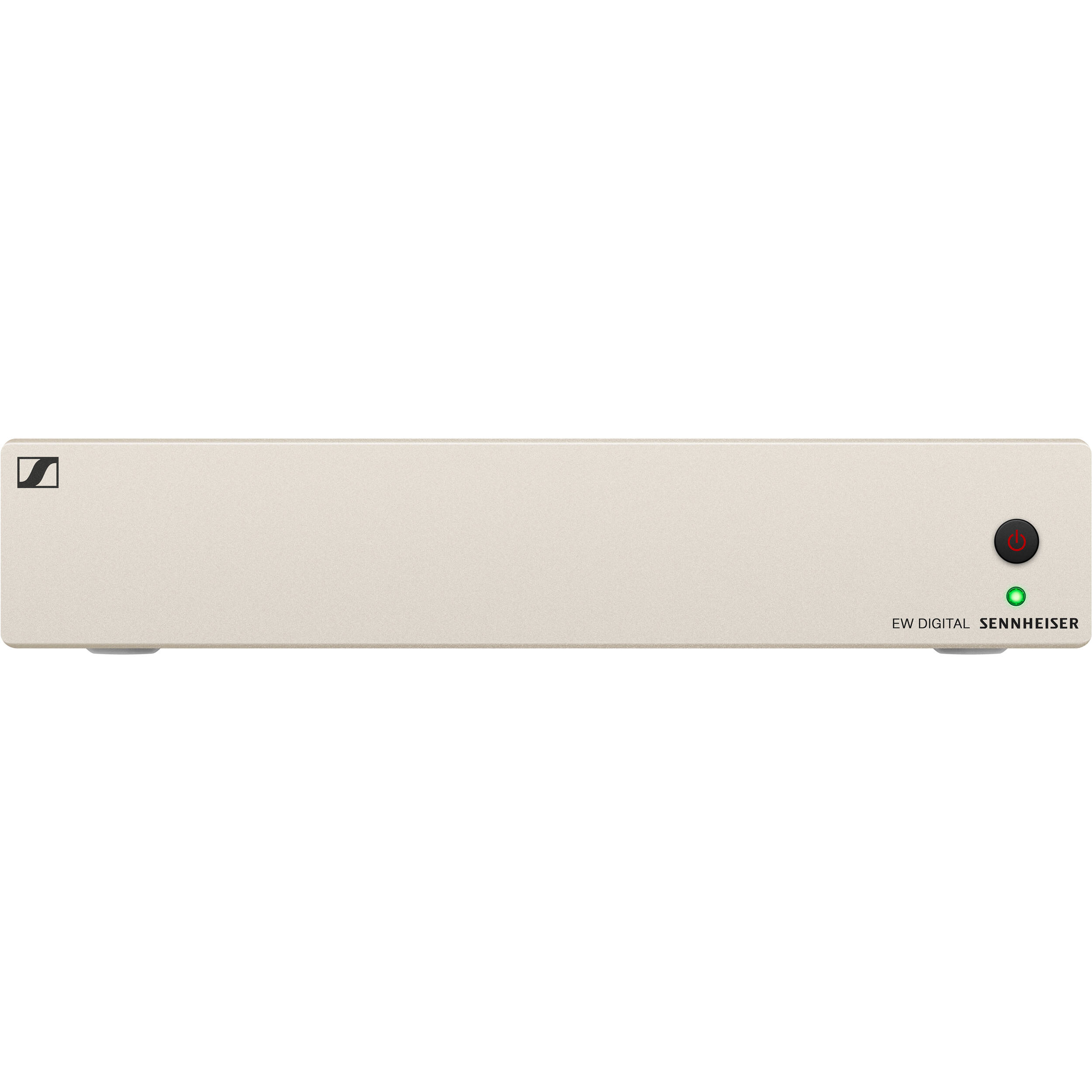

The Sennheiser EW-D ASA is an active antenna splitter designed for Evolution Wireless Digital systems. It distributes signals from one pair of antennas to up to four EW-D receivers in full diversity, and it also delivers DC power to those receivers, so multi-channel wireless racks are cleaner, more reliable, and easier to set up.

Highlights

• Active antenna splitter for Evolution Wireless Digital (EW-D) receivers
• Full diversity antenna distribution to up to 4 receivers
• Configurable as 2 x 1:4 or 1 x 1:8 splitter
• Distributes DC power to receivers, reducing power supply clutter
• Provides 12 V power to active antennas or antenna boosters
• Q-R-S range: 470 to 694 MHz; includes NT 12-35 CS power supply and BNC cables

Sennheiser EW-D ASA: Cleaner, Stronger Wireless Racks

Every wireless receiver needs a pair of antennas, so a four-channel rack without a splitter means eight antennas fighting for space and line of sight. The EW-D ASA lets all four receivers share one pair of antennas, ideally mounted remotely with a clear view of the stage. Because the splitter is active, it compensates for the signal loss of splitting, maintaining full diversity reception for every receiver.

The ASA also powers the connected EW-D receivers, eliminating a pile of individual wall-wart power supplies from your rack.

Using the EW-D ASA With Remote Antennas

For the best performance, pair the EW-D ASA with directional antennas such as the Sennheiser ADP UHF, mounted above the audience and aimed toward the performance area. The splitter supplies 12 V to active antennas or antenna boosters when longer cable runs are needed, so you can place antennas far from the rack without sacrificing signal.

Setting Up the EW-D ASA

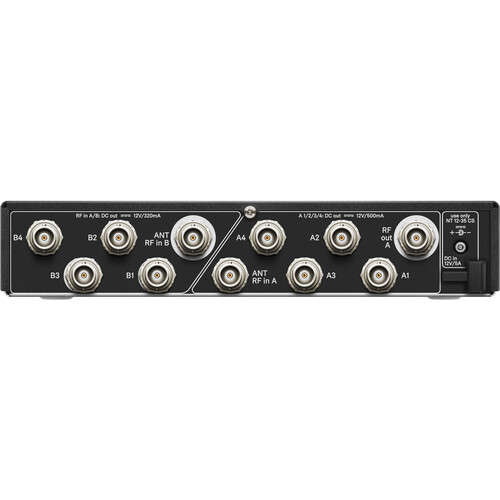

Mount the splitter in your rack with your EW-D receivers, connect the antenna inputs to your antennas, and connect each receiver’s antenna inputs to the splitter outputs with the included BNC cables. Power the system from the included NT 12-35 CS power supply. Use the EW-D Smart Assist app to scan for clear frequencies and sync your receivers and transmitters.

What to Pair With the EW-D ASA

Pair the EW-D ASA with up to four EW-D receivers, a pair of ADP UHF directional antennas, low-loss antenna cables, and a rack case or rack shelf. For larger systems, a second splitter in 1:8 mode can extend distribution.

Why Use an Antenna Splitter?

Antenna splitters reduce the number of antennas competing for space, eliminate the interference that occurs when many antennas sit close together, and make it practical to use high-quality remote antennas positioned with a clear view of the stage. The result is fewer dropouts, better range, and a tidier, faster-to-deploy wireless rack.

Sennheiser EW-D ASA FAQ

How many receivers can the EW-D ASA support? Up to four EW-D receivers in full diversity.

Does it power the receivers? Yes. The ASA distributes DC power to connected EW-D receivers.

Sennheiser EW-D ASA Specifications at a Glance

• Type: active antenna splitter
• Frequency range: 470 to 694 MHz (Q-R-S)
• Configuration: 2 x 1:4 or 1 x 1:8
• Gain: 0 ± 1 dB
• Impedance: 50 ohms
• Antenna power: 12 V to active antennas or boosters
• Power: NT 12-35 CS power supply (included)

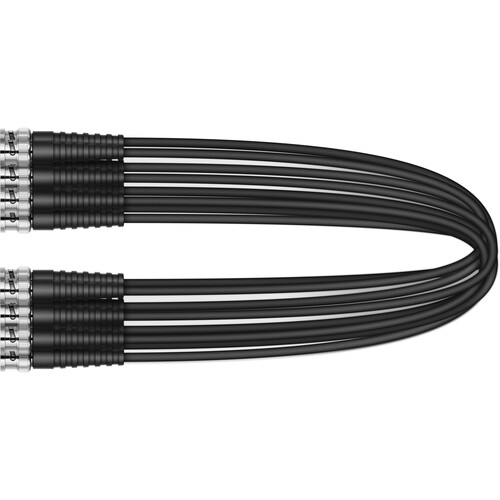

• Included: power supply, BNC cables

Who Buys the Sennheiser EW-D ASA

• Churches running multiple wireless microphones
• Theaters and schools
• Production and rental companies
• Venues with permanent wireless racks
