Chauvet Swarm 5FX ILS

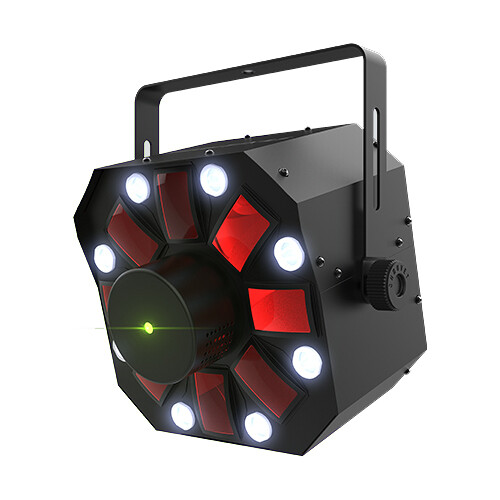

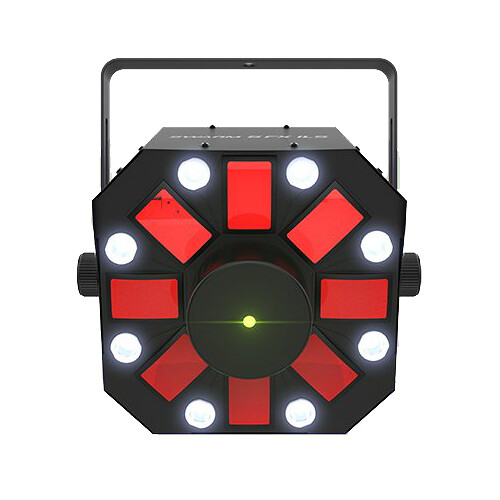

The Chauvet DJ Swarm 5 FX ILS is a 3-in-1 effect light that combines a rotating RGBAW derby, a red and green laser, and a white LED strobe in one compact fixture. Compatible with Chauvet’s Integrated Lighting System (ILS), it synchronizes with other ILS fixtures for coordinated shows, and built-in automated and sound-activated programs create an instant light show for mobile DJs, parties, and small venues.

Highlights

• 3-in-1: RGBAW rotating derby, red/green laser, and white strobe
• ILS compatible for coordinated shows
• D-Fi USB compatible for wireless master/slave or DMX control
• Automated and sound-activated programs; 9-channel DMX
• Strobe rate 0-20 Hz
• Power link up to 15 units at 120 V; 9.8 lb

Chauvet DJ Swarm 5 FX ILS: Three Effects in One

The Swarm 5 FX ILS packs a dance-floor light show into a single unit. The rotating derby sends multicolor RGBAW beams sweeping across the room, the red and green laser adds hundreds of moving pinpoint beams, and the white strobe adds punch to big moments. Built-in programs coordinate all three effects automatically or to the beat of the music.

ILS and Wireless Control

With ILS compatibility, the Swarm 5 FX ILS automatically synchronizes with other Chauvet DJ ILS fixtures when connected to an ILS hub such as the GigBAR Move + ILS. An optional D-Fi USB transceiver adds wireless master/slave and DMX control, so you can build a coordinated, cable-free rig.

Setting Up the Swarm 5 FX ILS

Mount the fixture on a T-bar, truss, or stand, or set it on a flat surface. Choose an automated or sound-active program for instant effects, or link multiple units in master/slave mode. For full control of each effect, connect a DMX controller and use the 9-channel mode. Power link units to reduce extension cords.

What to Pair With the Swarm 5 FX ILS

Pair the Swarm 5 FX ILS with a fog or haze machine to make derby and laser beams visible, a second unit for symmetrical effects, a lighting T-bar, and a D-Fi USB transceiver for wireless control.

Laser Safety

The Swarm 5 FX ILS includes red and green laser diodes. Keep laser beams above head height, avoid direct eye exposure, and never aim lasers at the audience. Follow local regulations for laser use at public events, and turn the laser off over DMX when it isn’t appropriate for a venue.

Making Effects Pop

Derby and laser effects are most impressive in a darkened room with light haze. Run a hazer or fog machine at a low level to make beams visible, mount the fixture above the crowd, and aim it toward the center of the dance floor so effects reach every corner.

Chauvet DJ Swarm 5 FX ILS FAQ

Do I need a DMX controller? No. Automated and sound-activated programs run without a controller.

What effects does it include? An RGBAW rotating derby, a red and green laser, and a white LED strobe.

Chauvet DJ Swarm 5 FX ILS Specifications at a Glance

• Derby: 5 LEDs (red, green, blue, amber, white)
• Strobe: 8 white LEDs; 0-20 Hz
• Laser: 520 nm green (30 mW), 650 nm red (100 mW)
• DMX: 9 channels; 3-pin XLR
• Control: standalone, DMX, master/slave, D-Fi USB, ILS
• Power: 100-240 VAC; 62W; power link 15 units at 120 V
• Weight: 9.8 lb (4.5 kg)

Who Buys the Chauvet DJ Swarm 5 FX ILS

• Mobile DJs
• Party and event rental companies
• Bars and small clubs
• Bands with their own lighting

Why Buy the Chauvet DJ Swarm 5 FX ILS From Metro Sound & Lighting

Metro Sound & Lighting isn’t a catalog-only retailer. We sell, install, and service lighting systems in-house, so our team can help you build a complete lighting package and support your fixtures after the sale. We offer B2B and integrator pricing for venues and production companies.

Browse more options in our Effects Lights category, or see the full specifications on the official Chauvet DJ Swarm 5 FX ILS product page.
