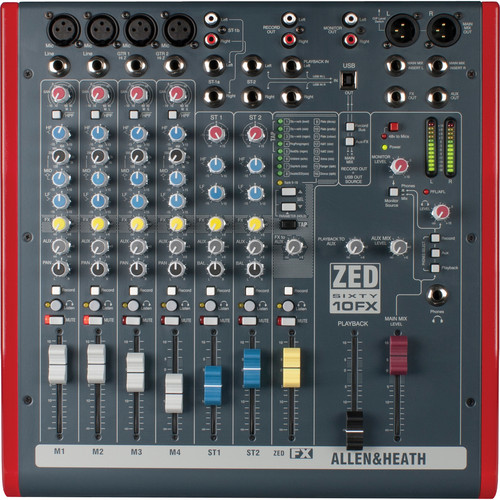

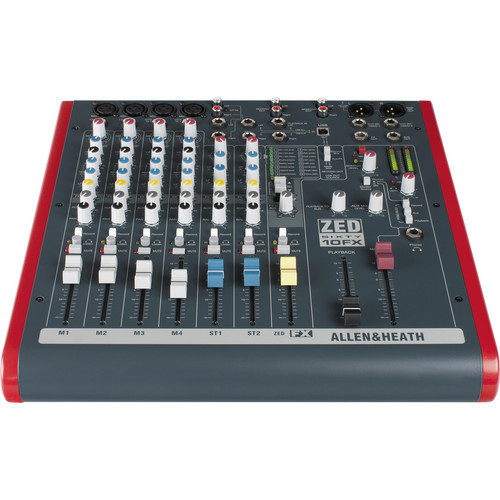

Allen & Heath ZED60-10FX

The Allen & Heath ZED60-10FX is a compact 6-channel analog mixer that packs professional features into a small, portable format. Four mic/line inputs with Allen & Heath’s discrete preamps, two Hi-Z guitar inputs, 16 built-in digital effects, 60 mm faders, and a USB audio interface make it a great choice for small bands, singer-songwriters, rehearsal rooms, and home recording.

Highlights

• 4 mic/line inputs (XLR and TRS) with phantom power
• 2 stereo inputs, including one with RCA
• 2 Hi-Z FET guitar inputs with gain boost
• 3-band EQ with sweepable mid and high-pass filter on mono channels
• 16 built-in digital effects from Allen & Heath’s digital consoles
• 60 mm faders; 2-in/2-out USB audio interface

Allen & Heath ZED60-10FX: Big Features, Small Mixer

The ZED60-10FX gives small setups the tools usually found on larger consoles. Each mono channel has a switchable high-pass filter and 3-band EQ with sweepable mids, plus FX and aux sends for effects and a monitor mix. Listen (PFL) buttons, mute switches, and 60 mm faders give smooth, tactile control.

Made for Guitars

Channels 3 and 4 include discrete, Class-A FET Hi-Z inputs, so you can plug a guitar or bass straight in without a DI box. A gain boost switch accommodates low-output pickups, and the FET circuitry approximates the warmth of a tube input stage.

Setting Up the ZED60-10FX

Connect microphones to the XLR inputs, guitars to the Hi-Z inputs on channels 3 and 4, and keyboards or playback devices to the stereo inputs. Connect the XLR main outputs to your powered speakers and the aux output to a monitor. Set gain with the PFL meters, then add effects with the FX sends.

What to Pair With the ZED60-10FX

Pair the ZED60-10FX with powered speakers or studio monitors, vocal and instrument microphones, XLR and instrument cables, headphones, and a padded mixer case.

Built-In Effects

Sixteen digital effects, including reverbs, delays, a doubler, flanger, and chorus, use algorithms from Allen & Heath’s flagship digital consoles. Each preset has a parameter control to adjust the intensity, so you can add polish to vocals and instruments without outboard gear.

Record Over USB

The 2-in/2-out USB interface sends a stereo mix to your Mac or PC for recording or streaming, and plays audio back from your computer. A dedicated recording bus lets you choose which channels go to the recording, separate from the main mix.

Built Like a Console

Individual vertically mounted channel circuit boards and front-panel controls secured with metal nuts give the ZED60-10FX the durability of larger Allen & Heath mixers. Preamps are based on the respected MixWizard design for low noise and high gain.

Allen & Heath ZED60-10FX FAQ

Can I plug a guitar in directly? Yes. Channels 3 and 4 have Hi-Z instrument inputs.

Can I record to my computer? Yes. The USB interface records and plays back stereo audio.

Allen & Heath ZED60-10FX Specifications at a Glance

• Channels: 6 (4 mono, 2 stereo)
• Mic/line inputs: 4 with XLR and TRS, phantom power
• Hi-Z inputs: 2 (channels 3 and 4)
• EQ: 3-band with sweepable mid, HPF (mono channels)
• Effects: 16 digital presets
• Faders: 60 mm
• USB: 2-in/2-out audio interface
• Outputs: XLR mains with inserts, RCA record, monitor outs

Who Buys the Allen & Heath ZED60-10FX

• Small bands and duos
• Singer-songwriters
• Rehearsal spaces
• Home studios and podcasters

Why Buy the Allen & Heath ZED60-10FX From Metro Sound & Lighting

Metro Sound & Lighting isn’t a catalog-only retailer. We design, install, and service sound systems in-house, so our team can help you choose the right mixer and support your system after the sale. We offer B2B and integrator pricing for churches, schools, and venues.
