Allen & Heath QUSB

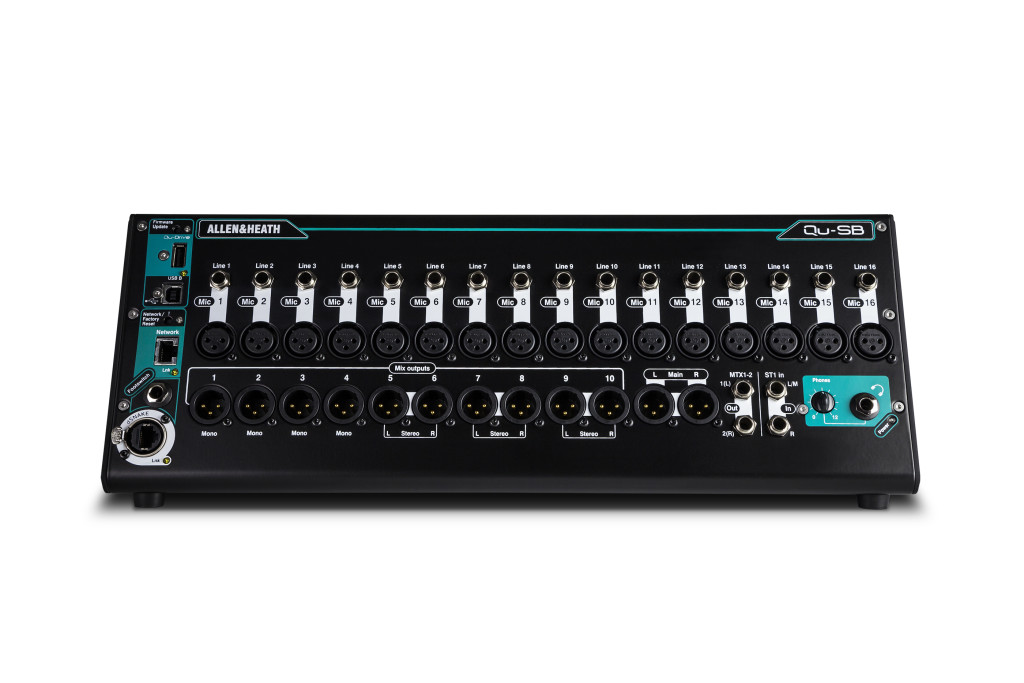

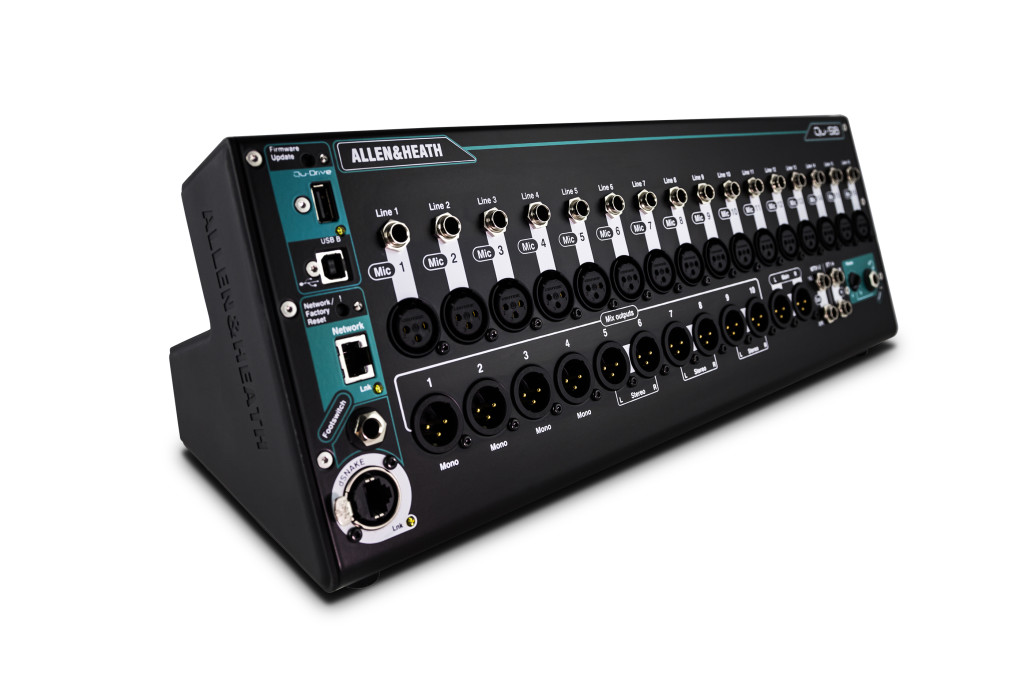

The Allen & Heath Qu-SB is an ultra-compact, console-less digital mixer that packs the Qu-32 mix engine into a rackmountable box controlled from an iPad. It has 18 inputs and 14 outputs on board, 16 recallable AnalogiQ preamps, iLive-derived effects, a 32×32 USB audio interface, and Qu-Drive multitrack recording, with dSNAKE expansion up to 38 inputs. It’s a powerful, portable mixer for bands, venues, and installations.

Highlights

• 16 recallable AnalogiQ mic preamps; 18 inputs and 14 outputs on board
• Qu-32 core: 32 mono + 3 stereo input channels via dSNAKE expansion (up to 38 inputs)
• Up to 11 monitor mixes plus 4 stereo iLive FX engines
• 32×32 USB audio interface and 18-track Qu-Drive recording to USB drives
• Automatic Mic Mixer for up to 16 microphones
• Qu-Pad iPad app and Qu-You personal monitoring app

Allen & Heath Qu-SB: Big-Mixer Power in a Small Box

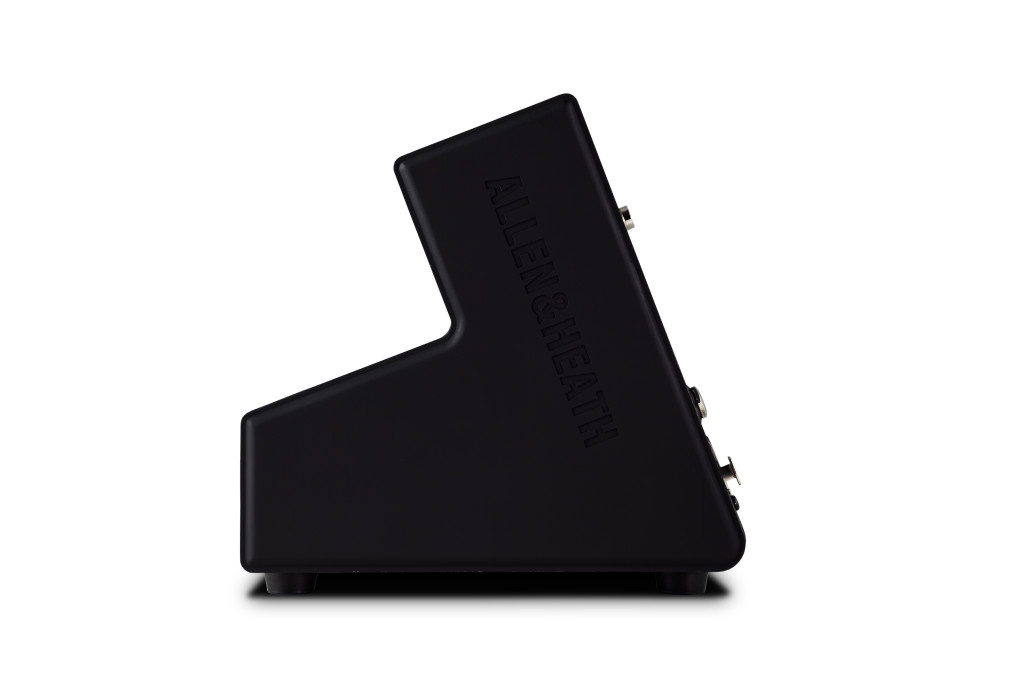

The Qu-SB has no faders or front-panel controls, which keeps it small enough to sit on stage, on a shelf, or in a rack. Instead, you mix from an iPad with the Qu-Pad app, which gives fast access to channel processing, meters, RTA, FX, scenes, and setup. Mix monitors from the stage, walk the room to tune the PA, and run the show from the best seat in the house.

The 16 AnalogiQ preamps are fully recallable, with 1 dB gain steps and zero-crossing detection for transparent, low-noise sound.

Processing, Effects, and Recording

Every input has trim, polarity, HPF, gate, insert/ducker, 4-band PEQ, compressor, and delay; every mix output has a 1/3-octave GEQ, 4-band PEQ, compressor, and delay. Four stereo iLive FX engines provide classic reverbs, delays, and modulation. Qu-Drive records up to 18 channels at 24-bit/48 kHz straight to a USB drive for virtual soundchecks, and the 32×32 USB interface connects to your DAW.

Setting Up the Qu-SB

Place the Qu-SB on stage or in a rack, connect microphones and instruments to the inputs, and connect the main and monitor outputs to your PA and wedges or in-ears. Connect a Wi-Fi router to the network port, join it with your iPad, and open Qu-Pad. Musicians can control their own monitor mixes with Qu-You on their phones.

What to Pair With the Qu-SB

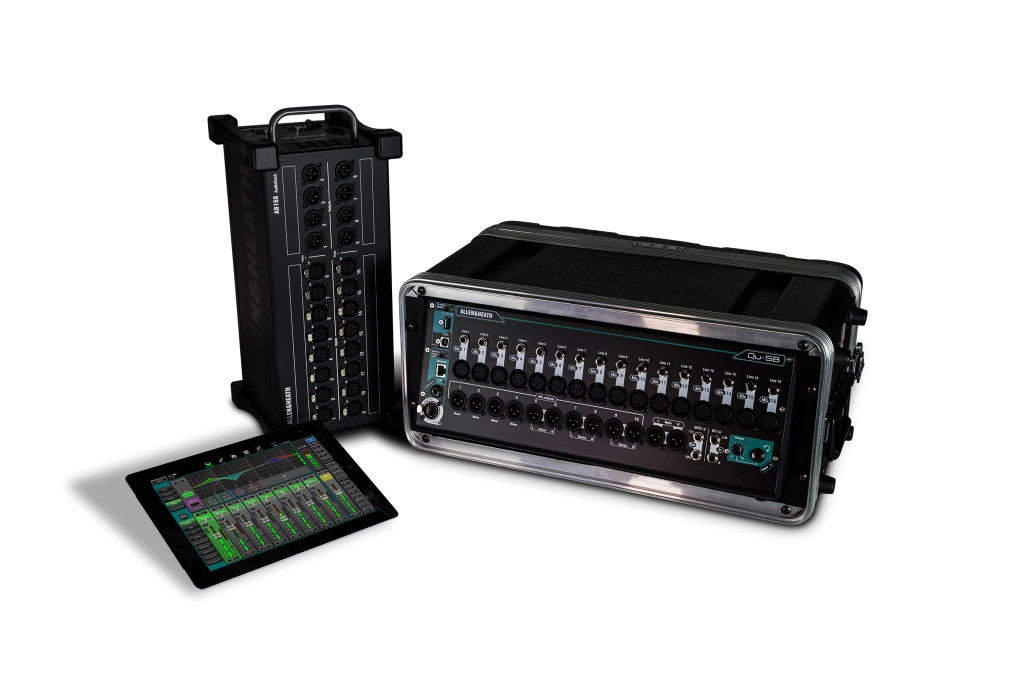

Pair the Qu-SB with an iPad, a dedicated Wi-Fi router, the optional rack ear kit, and an Allen & Heath AudioRack over dSNAKE for more inputs. A ME personal mixing system gives musicians hands-on control of their monitor mixes.

Automatic Mic Mixer for Speech

When several microphones are open at the same time, as in conferences, panels, and worship services, background noise and feedback risk add up. The Qu-SB’s Automatic Mic Mixer manages the levels of up to 16 mics using a gain-sharing algorithm, so whoever is speaking is heard clearly while the other mics are turned down. Priority settings let you give key speakers more weight.

Allen & Heath Qu-SB FAQ

Do I need an iPad? Yes. The Qu-SB has no front-panel controls and is designed to be mixed with the Qu-Pad app.

Can I expand the inputs? Yes. The dSNAKE port supports expansion up to 38 inputs.

Allen & Heath Qu-SB Specifications at a Glance

• I/O on board: 16 mono inputs (XLR/TRS), 1 stereo input; 12 mix outputs plus stereo matrix
• Preamps: 16 recallable AnalogiQ
• Mix engine: Qu-32 core (32 mono + 3 stereo input channels)
• Mixes: up to 11 monitor mixes (4 mono + 7 stereo)
• FX: 4 stereo iLive FX engines
• Groups: 4 DCAs, 4 mute groups
• USB: 32×32 audio interface; 18-track Qu-Drive recording
• Control: Qu-Pad (iPad), Qu-You (iOS/Android)

Who Buys the Allen & Heath Qu-SB

• Bands who mix from the stage
• Churches and houses of worship
• Small venues and bars
• Conference rooms and installations

Why Buy the Allen & Heath Qu-SB From Metro Sound & Lighting

Metro Sound & Lighting isn’t a catalog-only retailer. We design, install, and service sound systems in-house, so our team can set up your Qu-SB, configure wireless control, and support your system after the sale. We offer B2B and integrator pricing for churches, schools, and venues.
