ADJ MDF2-9SYS

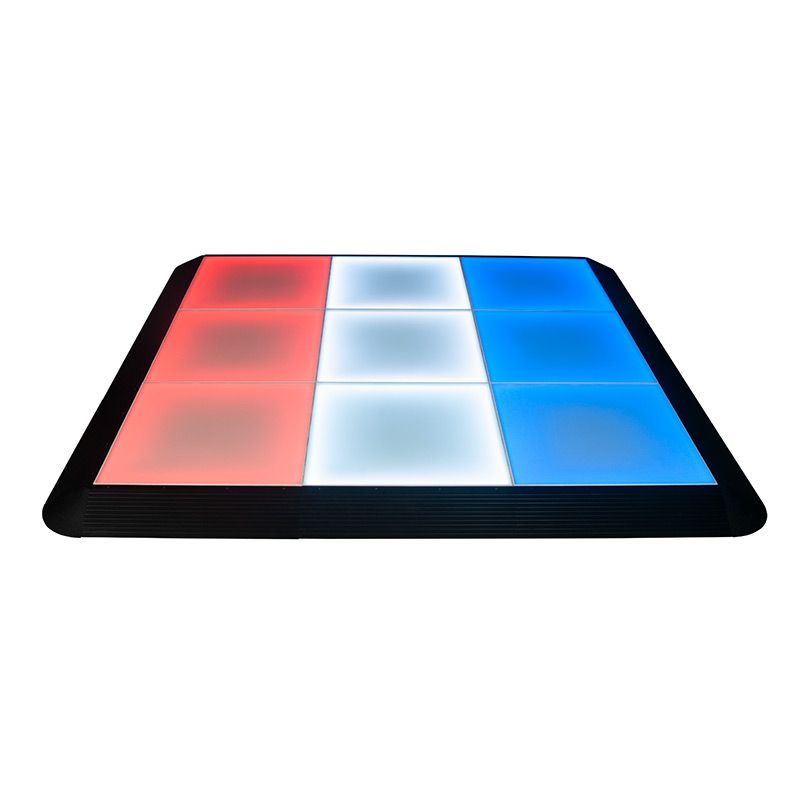

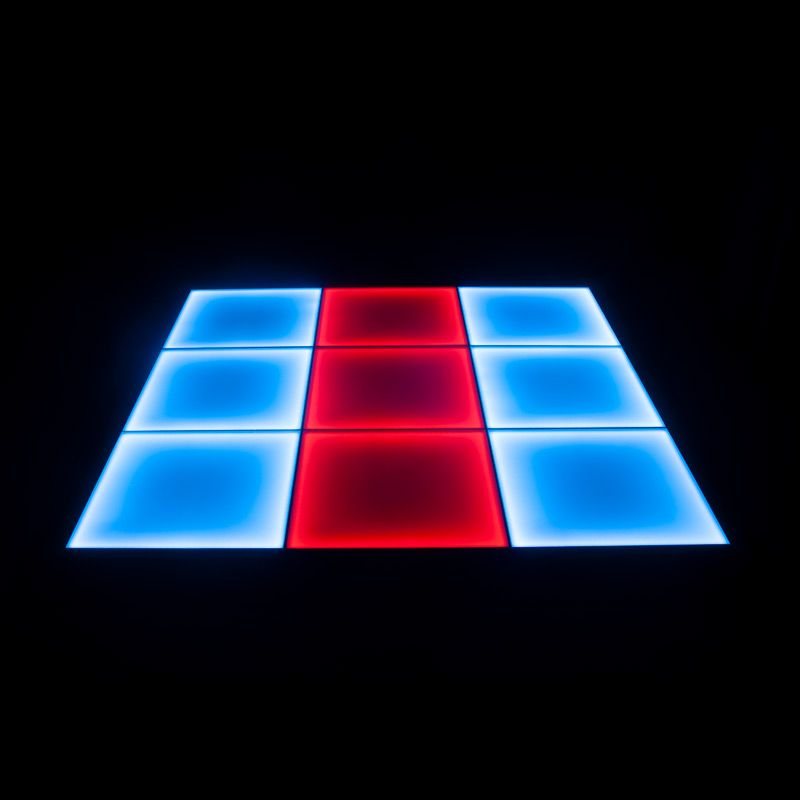

The ADJ MDF2-9SYS is a complete, portable 3×3 LED dance floor system. It includes nine MDF2 Magnetic Dance Floor panels, a power supply, cables, and edge ramps, all packed in a dedicated flight case. Each panel glows in vibrant RGB color under a tempered glass surface, and the magnetic locking system lets a small crew set up an eye-catching dance floor in minutes. Custom sizes are available; contact Metro for details.

Highlights

• Nine MDF2 panels for a 3×3 floor (about 1.8 m x 1.8 m)
• 3-in-1 RGB LEDs under opaque tempered glass
• Magnetic locking with cable-free power and data between panels
• Each panel supports up to 300 kg/m2 (61.5 lb/ft2)
• DMX control via 3-pin XLR on the power ramp
• Includes power supply, cables, ramps, and flight case

ADJ MDF2-9SYS: A Complete LED Dance Floor in One Case

An LED dance floor turns any event into a showpiece, but many floors are heavy, slow to assemble, and require lots of cabling. ADJ’s MDF system was designed to solve that. Each 600 x 600 mm panel is just 70 mm high and weighs about 12 kg, and panels snap together with magnets. Power and data pass between adjacent panels without cables, so only one power ramp per row needs to be connected.

The MDF2-9SYS packs everything you need for a 3×3 floor into a single flight case, making it ideal for rental and event production companies.

DMX Control and Color

Power and DMX control enter each row through the MDF2PR power ramp, which has 3-pin XLR input and output and proprietary 24 V DC power connections. Connect the floor to a DMX controller or lighting console to run colors, chases, and patterns in sync with the rest of your lighting rig.

Setting Up the MDF2-9SYS

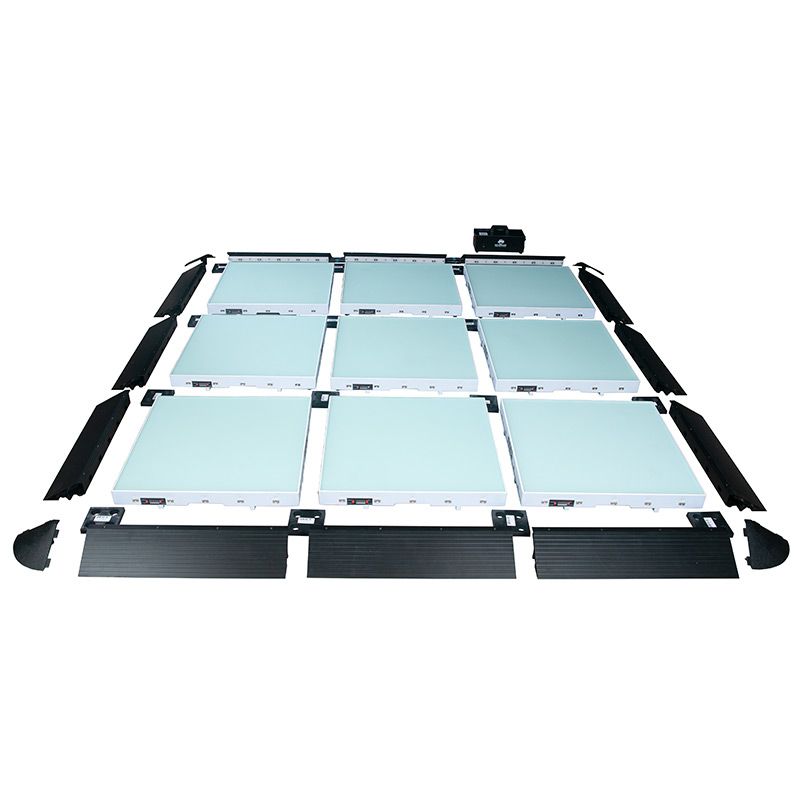

Choose a flat, level surface. Lay out the first row of panels, connecting the power ramp to the row, then add the remaining rows, letting the magnets align each panel. Fit the edge and corner ramps on the remaining sides for a safe, finished edge. Connect the power supply and DMX, then test the floor before guests arrive. Use the dedicated lifting tool to remove panels from the middle of the floor.

What to Pair With the MDF2-9SYS

Pair the MDF2-9SYS with a DMX controller or lighting software, uplighting, moving heads, and haze for a complete event look. Add more MDF2-9SYS systems or individual panels and accessories for larger floors.

Planning a Larger Dance Floor

The MDF2-9SYS can be combined with additional systems or individual panels to create larger floors. ADJ offers power supplies sized for different numbers of panels, plus edge ramps, corner ramps, and power ramps sold individually. Plan your floor size, count the rows (each row needs its own power ramp), and choose a power supply that matches the total number of panels. Our team can help you spec the right combination for your events.

ADJ MDF2-9SYS FAQ

How much weight can the floor hold? Each panel supports up to 300 kg/m2 (61.5 lb/ft2), plenty for a crowded dance floor.

Can I make a larger floor? Yes. Add more panels, ramps, and power supplies, or combine multiple systems. Contact Metro for custom sizes.

ADJ MDF2-9SYS Specifications at a Glance

• Panels: 9 x MDF2 (3×3 layout)
• Panel size: 600 x 600 mm (23.62 x 23.62 in); height 70 mm (2.76 in)
• Panel weight: 12.05 kg (26.57 lb)
• Load rating: 300 kg/m2 (61.5 lb/ft2)
• LEDs: 3-in-1 RGB
• Control: DMX via 3-pin XLR on power ramp
• Power: 24 V DC via dedicated power supply
• Includes: panels, power supply, cables, ramps, flight case

Who Buys the ADJ MDF2-9SYS

• Event rental and production companies
• Mobile DJs and wedding entertainers
• Nightclubs and bars
• Banquet halls and event venues

Why Buy the ADJ MDF2-9SYS From Metro Sound & Lighting

Metro Sound & Lighting isn’t a catalog-only retailer. We sell, install, and service lighting systems in-house, so our team can help you plan your dance floor, configure custom sizes, and support your system after the sale. We offer B2B and integrator pricing for venues and production companies.

Browse more options in our LED Dance Floor category, or see the full specifications on the official ADJ MDF2-9SYS product page.
