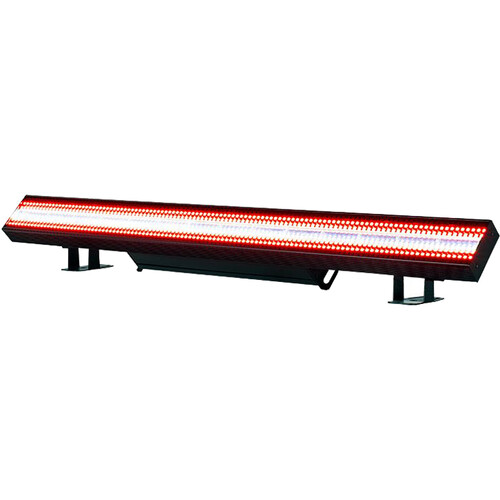

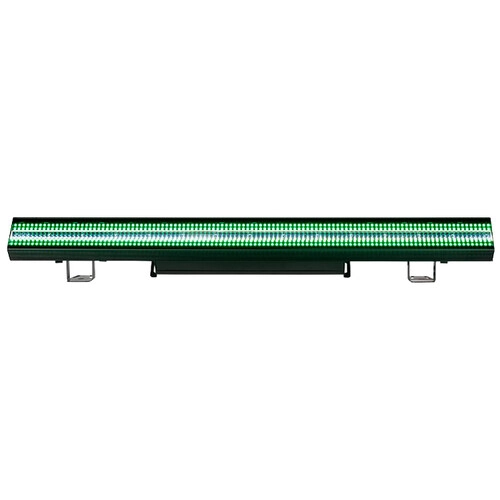

ADJ Jolt Bar FX

The ADJ Jolt Bar FX is a linear LED effect bar that works as a color wash, strobe, and blinder in one fixture. With 672 RGB SMD LEDs and 112 cool-white SMD LEDs divided into 32 RGB zones and 16 white zones, it produces intense white strobes, saturated color washes, and fast zone chases for concert productions, festival stages, rental houses, and large nightclubs.

Highlights

• 672 x 0.3W RGB SMD LEDs + 112 x 5W cool-white SMD LEDs
• 32 RGB zones and 16 cool-white zones for chase effects
• Wide 116-degree beam angle
• 11 DMX modes from 6 to 126 channels
• 25 RGB and 9 white built-in program macros
• Strobe rate 0.35-25 Hz; refresh rates up to 25 kHz

ADJ Jolt Bar FX: Three Effects in One Bar

The Jolt Bar FX gives designers a wash light, strobe, and blinder in a single linear fixture. The white LEDs deliver punchy strobes and audience blinder hits, the RGB LEDs fill the stage with color, and independent zone control lets you run chases and eye-candy effects across the bar. Multiple bars placed side by side create continuous zone chases across a whole stage.

Flexible Control

Eleven DMX modes from 6 to 126 channels let you choose between simple control and full zone-by-zone programming. Built-in program macros for RGB and white provide quick looks without detailed programming, and adjustable dimming modes, dim curves, and LED refresh rates suit live events and on-camera productions.

Setting Up the Jolt Bar FX

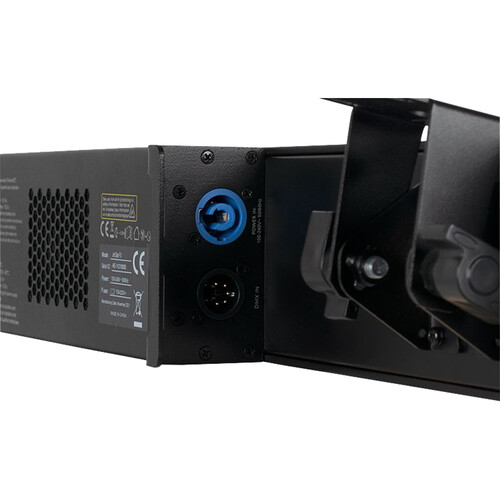

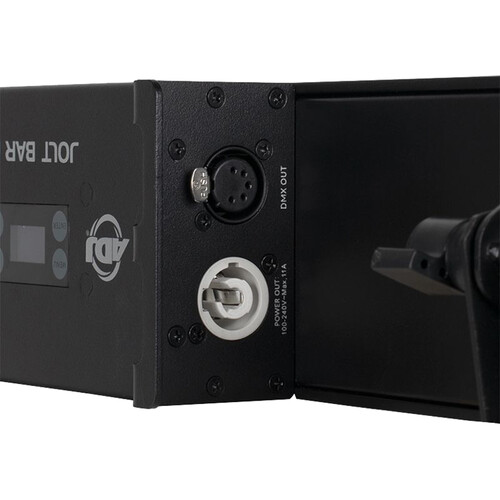

Mount the bar on a truss using the included 180-degree hanging brackets, or use them as floor stands. Place multiple bars side by side for continuous effects, and daisy-chain data via 5-pin DMX and power via the twist-lock in/out connectors. Choose a DMX mode that matches how much control you need, from simple wash to full pixel zones.

What to Pair With the Jolt Bar FX

Pair the Jolt Bar FX with additional bars for continuous chases, a professional DMX console or pixel-mapping software, rated truss clamps and safety cables, and moving heads for a complete concert rig.

Strobe and Blinder Effects

Strobes and blinders add impact to drops, hits, and big moments in a show. Blinders briefly flood the audience with bright white light, while strobes create rapid flashes that emphasize rhythm. Combining both in a single bar with color wash capability means fewer fixtures on the truss and more creative flexibility.

Zone Chases for Eye Candy

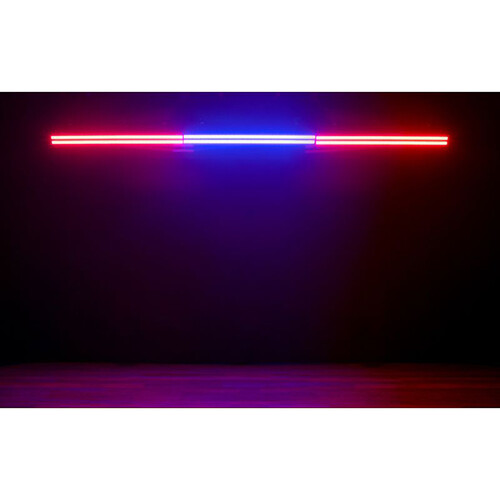

With 32 RGB zones and 16 white zones, the Jolt Bar FX can run chases, waves, and patterns along its length. Lined up across a stage, multiple bars become a continuous effect surface that adds motion and energy even when the stage is static.

ADJ Jolt Bar FX FAQ

Can it be used as a blinder? Yes. Its cool-white LEDs work as a strobe and blinder, while the RGB LEDs provide color wash.

How many DMX modes does it offer? Eleven, from 6 to 126 channels.

ADJ Jolt Bar FX Specifications at a Glance

• LEDs: 672 x 0.3W RGB SMD + 112 x 5W cool-white SMD
• Zones: 32 RGB, 16 cool white
• Beam angle: 116 degrees
• DMX: 11 modes, 6-126 channels; 5-pin XLR
• Strobe: 0.35-25 Hz

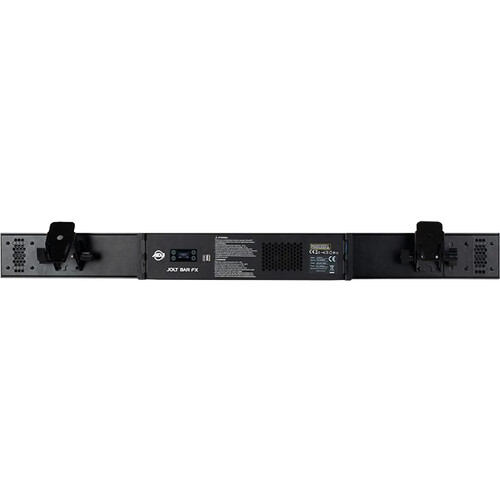

• Mounting: two 180-degree brackets (hang or floor)

Who Buys the ADJ Jolt Bar FX

• Concert and festival production companies
• Rental houses
• Large nightclubs
• Touring productions

Why Buy the ADJ Jolt Bar FX From Metro Sound & Lighting

Metro Sound & Lighting isn’t a catalog-only retailer. We sell, install, and service lighting systems in-house, so our team can help you design your rig and support your fixtures after the sale. We offer B2B and integrator pricing for venues and production companies.

Browse more options in our Effects Lights category, or see the full specifications on the official ADJ Jolt Bar FX product page.
