Yamaha DM5
60-Channel Dual-Bay Digital Mixing Console
Yamaha's newest flagship, built on the DM7 processing engine, arrives in the US this fall. Metro Sound & Lighting is an authorized dealer taking pre-orders now, with a demo unit debuting on our showfloor for the first time anywhere in the Central US.
Or call (888) 647-9342 — chat with us now.
The Next Generation of the Yamaha Digital Console Line
The Yamaha DM5 digital mixing console is Yamaha's newest flagship desk, built for touring, broadcast, corporate AV, and theater engineers who need studio-grade processing with the reliability Yamaha consoles are known for. It shares its processing engine with the acclaimed DM7 series, scaled into a rugged dual-bay control surface designed to live on a front-of-house cart or a permanent install rack.
The Yamaha DM5 mixes up to 60 channels across 24 mix busses, 12 matrices, two stereo busses, and 12 DCAs, with 64x64 Dante networking at 96 kHz for tying into a larger show network. Two 12-fader bays plus masters (26 faders total) put hands-on control within reach on both sides of the console.
APPLICATIONS
Where the DM5 Fits
The Yamaha DM5's channel count, DCA structure, and Dante networking make it a fit for the larger jobs Metro's install and production customers bring in regularly:
- Touring and live sound — 26 faders across dual bays with 12 DCAs for fast, hands-on mixing on big-stage shows.
- Broadcast and corporate AV — 96 kHz Dante networking and 12 matrices for routing to multiple rooms, feeds, and record paths.
- Theater and houses of worship — 60 channels of headroom for productions running bands, wireless mics, and playback simultaneously.
- Permanent installs — a rugged dual-bay chassis built to live in a booth or FOH position long-term, not just tour in a road case.
SOUND
Everything You Need to Take Your Sound to the Next Stage
Powerful channel strip processing, effects, and plug-ins running on the PY-DSP give you the tools to build and layer a mix that's all your own — while honoring Yamaha's legacy of transparent sound captured direct from the stage.

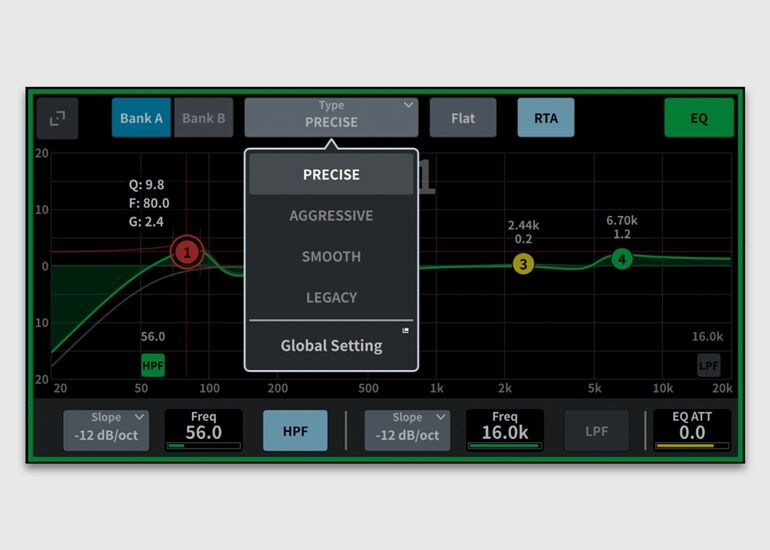

Channel Strip & RTA
Four EQ types with real-time analyzer overlay, plus 8 dynamics processors per channel — FET Limiter, Diode Bridge Comp, Comp260, Legacy Comp, Gate, De-Esser, Expander, and Ducking.

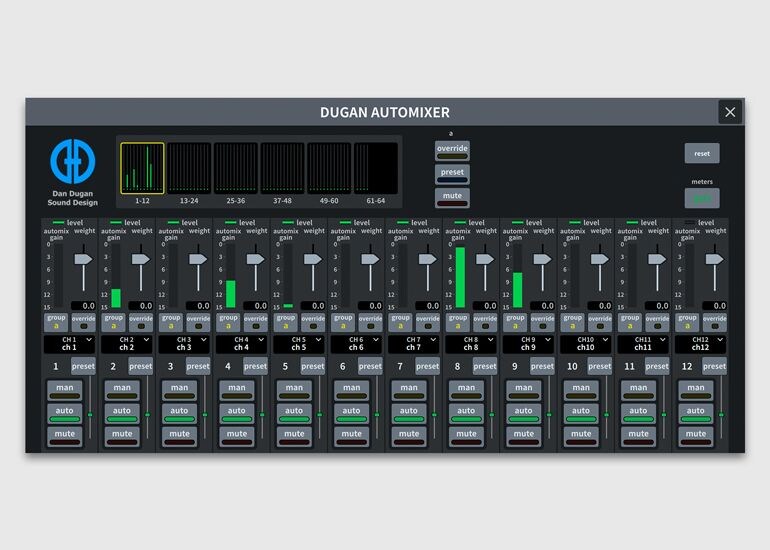

Dugan Automixer
The Dugan Speech System algorithm reinforces multiple mics while automatically maintaining overall level to avoid feedback — 12 channels standard, expandable to 64.

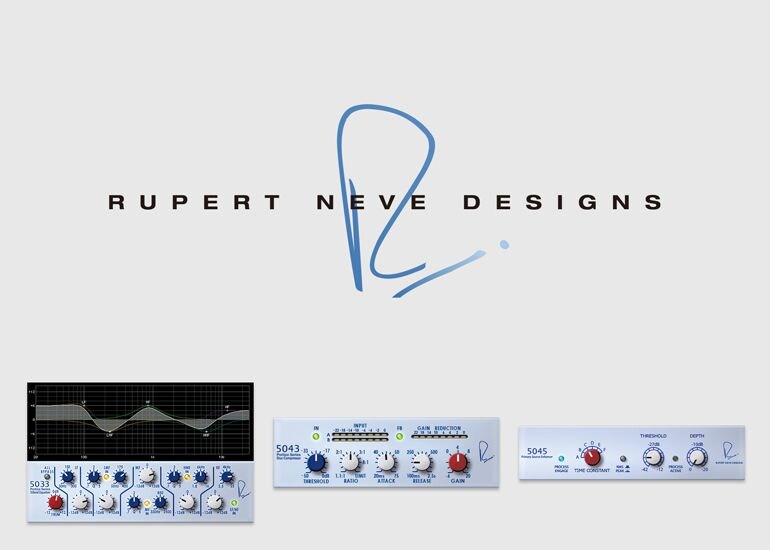

Premium Rack
A PY-DSP card unlocks 32 plug-in slots, including the Rupert Neve Designs Portico 5033 EQ and Portico 5043 compressor, plus Yamaha plugins like Dynamic EQ and DaNSe noise suppression.
43 Effect Types
A built-in multi-effects processor delivers 13 reverb types (including REV HD and REV R3), 8 delay types, modulation effects, and saturation tools like an amp simulator and MBC3 multiband compressor.
Built to See in Any Room

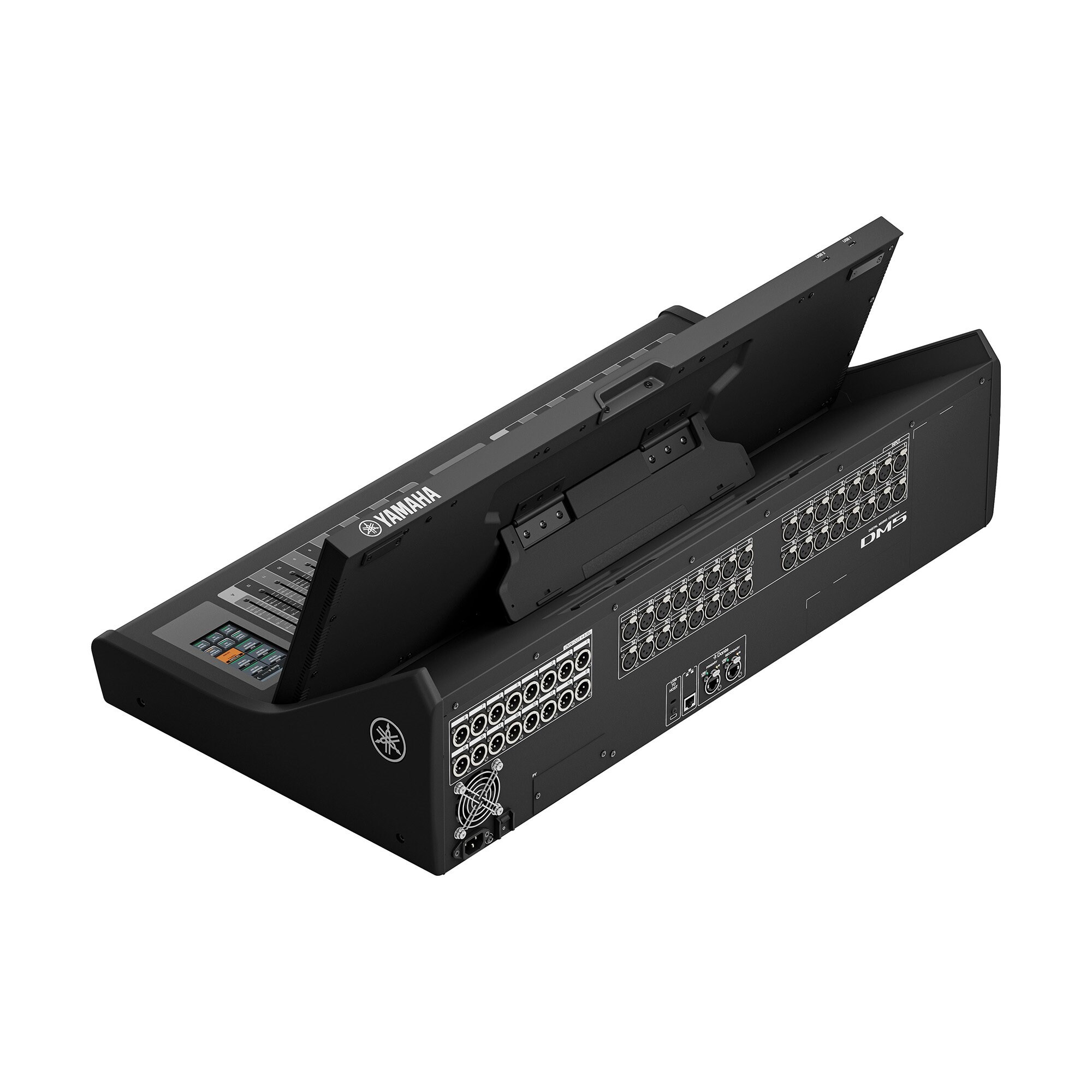

Each bay carries its own 13.3-inch touchscreen alongside a 4.3-inch utility display, with an adjustable tilt offering four viewing angles to cut glare in bright rooms and outdoor mixing positions. The rugged dual-bay chassis is built to live on a front-of-house cart show after show, or in a permanent install rack.
A compact single-bay version, the DM5C (48-channel), brings the same DM7-derived engine into a smaller footprint.
WORKFLOW
Built to Evolve With the Way You Work
The Yamaha DM5 tailors operating styles and parameters to each operator, so your workflow gets smoother and more intuitive, not more complicated.
Glass Keys

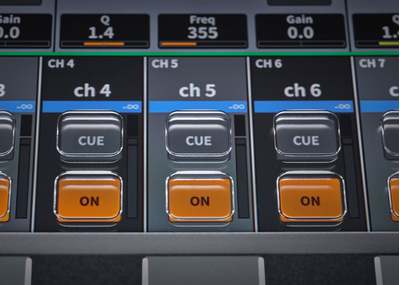

Display-built keys give the tactile response of physical buttons, with labels that change dynamically to match their function — when Sends on Fader is active, "ON" becomes "SEND ON."
Assist Functions

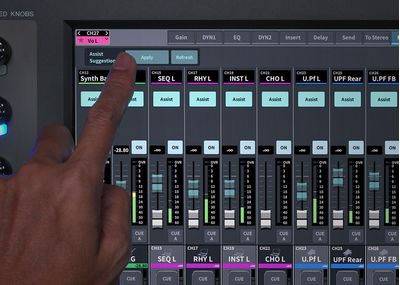

HA Assist, Naming Assist, Comp Assist, and Fader Assist suggest optimal starting points based on your input signal, cutting setup and preparation time.

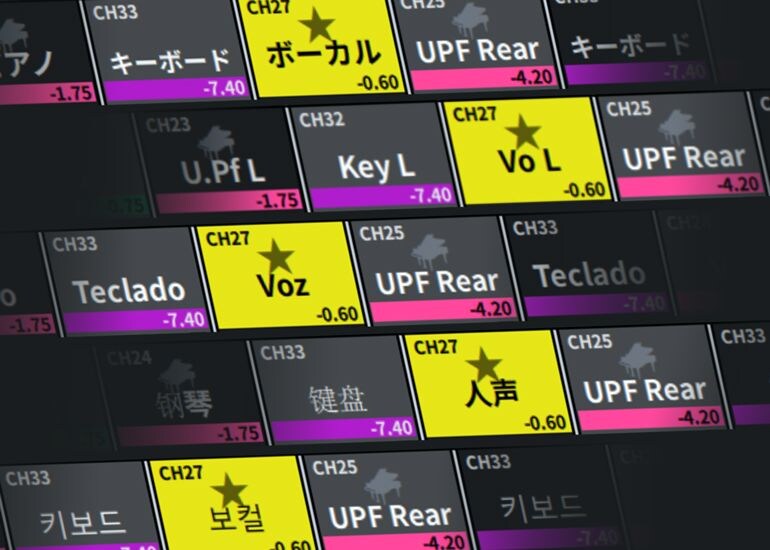

Multilingual Channel Names
Channel name displays support multiple languages, so artist and instrument names show in the operator's own language for faster, more intuitive operation.
Broadcast, Theatre & PY Expansion
Add the Broadcast Package for Mix Minus and Audio Follow Video, or the Theatre Package for 4-Bank EQ/DYN and an Actor Library. The PY slot adds up to 64 channels of I/O via Dante SRC, MADI, AES/EBU, or MIDI/GPI cards.
CONTROL
Experience Refined Precision
Seamless integration with connected devices and remote operation from anywhere in the venue keep the whole system working together.

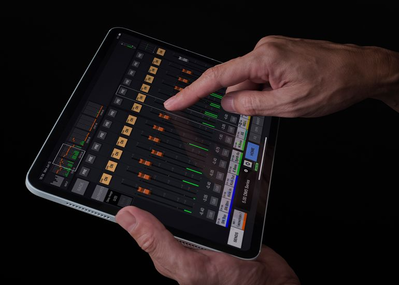

DM StageMix & MonitorMix
Remote control from an iPad for fine-tuning from the stage or audience, plus a password-protected MonitorMix app performers can use for their own personal monitor mix.

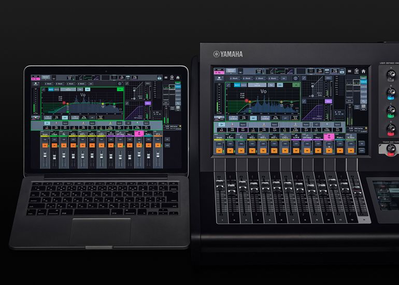

DM Editor
Offline setup, editing, and backup on Windows or Mac, sharing a common GUI and mutually compatible console files with the DM7 series — faders can even be shown in-app for remote adjustments.

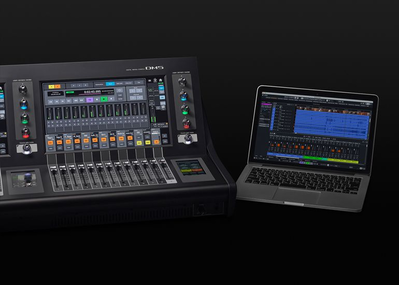

DAW Remote
Sync the console with your DAW for tactile control of level adjustments and transport functions using the DM5's own faders, buttons, and knobs.
One Ecosystem

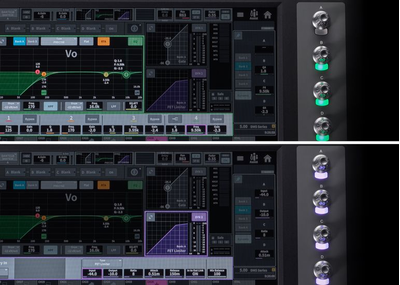

Four freely assignable User Defined Knobs beside the screen, plus control and monitoring of Yamaha I/O and amplifiers — with compatibility across RIVAGE PM, DM7, DM5, CL, QL, DM3, and TF consoles.
FULL SPECIFICATIONS
Yamaha DM5 Specifications
Software package add-ons: Dugan Automixer License (DEK-DUGAN), Broadcast Package (DEK-BR), Theatre Package (DEK-TH). PY cards: PY-DSP, PY64-D, PY64-MD, PY8-AE, PY-MIDI-GPI.
Full manufacturer documentation is on Yamaha's official DM5 product page.
AVAILABILITY
Ordering Now — Supply Is Tight
The first US allocation of the Yamaha DM5 is limited to 10 consoles total, and Metro Sound & Lighting is confirmed for two of them. None of the first ten ship before the end of October, so placing your order now determines where you land in line.
10
2
Nov+
SPECIAL EVENT
See It Before It Ships
Central US Exclusive
DM5 Demo Unit — Live on the Metro Showfloor
Metro will have a demo Yamaha DM5 on the showfloor during a special event — the first time this console will be shown in person anywhere in the Central US. Date, time, and location are being finalized.
Details: to be announced. Call or chat with Metro to be notified the moment the event is set.
SERIES LINEUP
DM5 Series Lineup

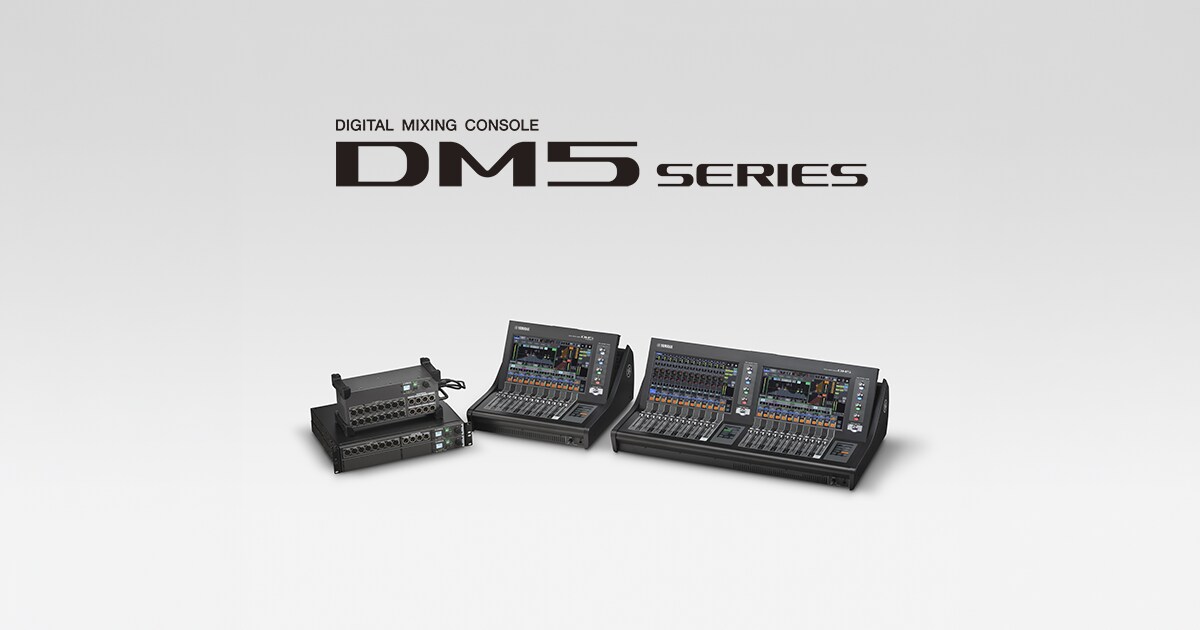

DM5 (dual-bay, 60-channel), DM5C (single-bay, 48-channel), and Yamaha's new R Series utility I/O devices.
WHY METRO
Why Order the DM5 From Metro
Metro Sound & Lighting is an authorized Yamaha Pro Audio dealer, and every console we sell is backed by our in-house electronic repair shop — so if the Yamaha DM5 ever needs service, you're not shipping a flagship desk back to a warehouse and waiting weeks. We also handle full installed sound system design and integration for touring companies, houses of worship, theaters, and broadcast facilities, so if the Yamaha DM5 is one piece of a larger system, our team can scope that with you directly. For production companies and integrators ordering in volume, reach out to our sales team to talk through your show calendar or install timeline.
Reserve Your Yamaha DM5
With only two consoles confirmed from the first shipment, call or chat with Metro Sound & Lighting now to reserve your Yamaha DM5.
