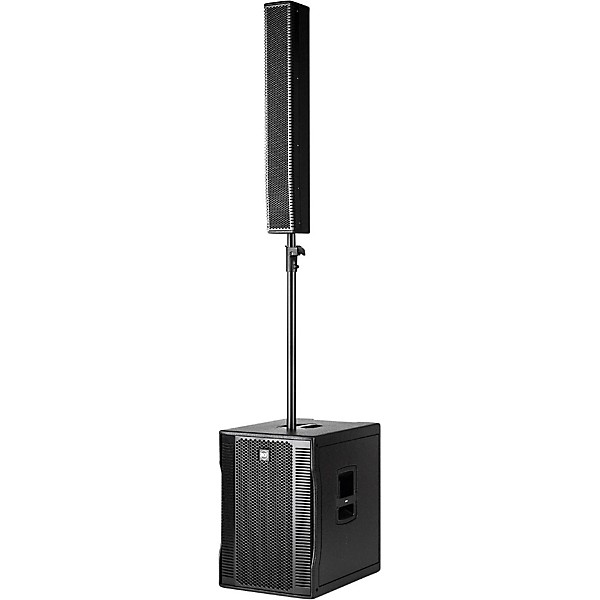

RCF EVOX 12

The RCF EVOX 12 is a powerful portable two-way array system that pairs a 15-inch subwoofer with a column of eight 4-inch neodymium full-range drivers. A built-in 1400-watt amplifier delivers 130 dB with response down to 40 Hz, while a progressively shaped array and RCF’s FiRPHASE processing provide clear, even coverage from the front row to the back of the room. It’s one of the most powerful line sources in its class, ideal for bands, DJs, and events.

Highlights

• 1400W Class-D amplifier (1000W sub, 400W array)
• 15-inch high-excursion subwoofer with 3-inch voice coil
• 8 x 4-inch neodymium full-range drivers with phase plugs
• 130 dB max SPL; 40 Hz-20 kHz response
• 90 x 30 degree slightly tilted coverage
• FiRPHASE DSP, wheels, telescopic handle, and Baltic birch sub cabinet

RCF EVOX 12: Big Output, Simple Setup

The EVOX 12 sets up in three steps: screw the pole onto the subwoofer, slide the array onto the pole, and connect the included speakON cable. Two low-profile wheels and a telescopic handle make the subwoofer easy to roll into place, and all components fit in optional transport covers.

Clear, Even Coverage

The column’s vertical array is progressively shaped to deliver correct listening from the first row and avoid the high-frequency beaming typical of straight arrays. Constant 90-degree horizontal directivity spreads sound evenly across the audience.

Setting Up the EVOX 12

Position the subwoofer, attach the adjustable pole, and mount the array at the right height for your audience. Connect the array with the speakON cable, plug a mixer or source into the XLR/1/4-inch input, and select Flat or Boost EQ and input sensitivity. Use the XLR output to link a second system.

What to Pair With the EVOX 12

Pair the EVOX 12 with a compact mixer, vocal microphones, XLR cables, a second EVOX 12 for stereo, and the optional RCF transport covers.

FiRPHASE Processing

RCF’s proprietary FiRPHASE filters deliver transparent sound, clarity, and imaging without phase distortion, while keeping system latency low for live performance.

Powerful, Efficient Amplifier

The Class-D amplifier with switch-mode power supply offers fast attack and realistic transients, and a solid aluminum structure provides fanless heat dissipation for quiet operation.

Deep, Punchy Bass

The high-excursion 15-inch RCF woofer extends to the lowest frequencies with quick, precise punch, and a bass-reflex port designed to avoid air turbulence reduces distortion.

Built for the Road

The sturdy Baltic birch subwoofer cabinet handles touring wear and tear, and the two-part pole separates for compact storage in a transport bag.

Placement Tips

Set the array height so the top of the column sits just above the audience’s heads, and keep the system slightly in front of performers to reduce feedback. Use two systems for stereo in wider rooms.

RCF EVOX 12 FAQ

Is a subwoofer included? Yes. The system includes the 15-inch powered subwoofer, column array, and pole.

How do the parts connect? The array connects to the subwoofer with the included speakON cable.

RCF EVOX 12 Specifications at a Glance

• Power: 1400W (1000W LF, 400W array)
• Drivers: 15-inch woofer, 8 x 4-inch neodymium full-range
• Frequency response: 40 Hz-20 kHz
• Max SPL: 130 dB at 1 m
• Coverage: 90 x 30 degrees
• Inputs/outputs: XLR/1/4-inch in, XLR out, speakON to array
• Processing: FiRPHASE DSP, Flat/Boost EQ

Who Buys the RCF EVOX 12

• Bands and performers
• Mobile DJs
• Churches and event venues
• Rental companies

Why Buy the RCF EVOX 12 From Metro Sound & Lighting

Metro Sound & Lighting isn’t a catalog-only retailer. We design, install, and service sound systems in-house, so our team can help you choose the right portable PA and support it after the sale. We offer B2B and integrator pricing for churches, schools, and venues.

Browse more options in our Column Arrays category, or see the full specifications on the official RCF EVOX 12 product page.
