Presonus Studiolive 64S
64-channel Series III digital console with 76 mixing channels, 43 buses, 32 recallable XMAX preamps, AVB networking, 64×64 USB recording, and an onboard SD multitrack recorder.
$4,999.95
Product Details
The PreSonus StudioLive 64S brings the power of a large-format console to a compact digital mixer. Built on the quad-core FLEX DSP Engine, it offers 76 mixing channels, 43 mix buses, 32 recallable XMAX preamps, and hundreds of simultaneous processors, along with built-in multitrack recording and AVB networking, making it a complete mixing, recording, and networking hub for demanding live and installed applications.
Highlights
- 76 mixing channels and 43 mix buses powered by the quad-core FLEX DSP Engine
- 32 recallable XMAX Class A mic preamps
- 32 FlexMixes configurable as aux, subgroup, or matrix mixes, plus 24 DCAs
- Fat Channel processing with vintage-style EQ and compressor models on every input and bus
- 64×64 USB recording and playback, plus a 34×34 onboard SD card recorder
- AVB networking for stage boxes, personal monitor mixers, and multi-console systems
PreSonus StudioLive 64S: Big-Console Power, Small Footprint
The 64S is built for productions that outgrow typical compact digital mixers: large worship services, multi-band events, theater productions, and corporate shows. With 76 mixing channels and 43 buses, there’s room for every input, every monitor mix, and every effects return, and the FLEX DSP Engine provides enough processing to run full Fat Channel processing, reverbs, and delays without compromise.

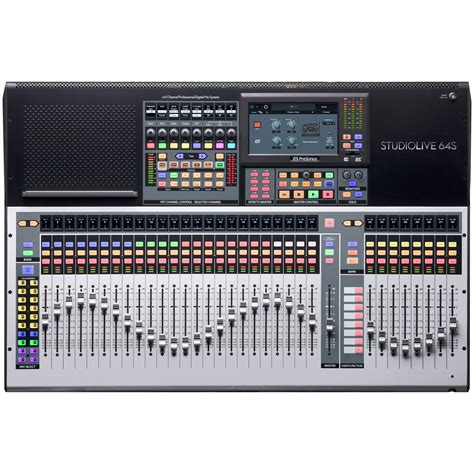

The surface uses flex faders, user-customizable layers, and a large touchscreen for fast navigation, so engineers can build the workflow that suits them. Scenes and presets make it easy to recall entire shows or switch between services and events.
StudioLive 64S Recording and Virtual Soundcheck
Recording is built in. Connect a computer over USB to record and play back 64 channels into Capture, Studio One, or any DAW, or record directly to an SD card with the onboard 34×34 recorder. Virtual Soundcheck lets you play back a recorded performance through the console to tune your mix without the band on stage, an invaluable tool for volunteer teams and busy venues.
AVB Networking and Expansion
AVB networking connects the 64S to PreSonus stage boxes, StudioLive Series III rack mixers, and personal monitor mixers over standard network cable. Place stage boxes near the performers to eliminate heavy analog snakes, link multiple consoles for front-of-house and monitor positions, and give each musician their own mix with personal monitor stations.
Remote Mixing With UC Surface
The StudioLive 64S works with PreSonus UC Surface control software on Mac, Windows, and iPad, and QMix-UC on phones for personal monitor control. Engineers can walk the room with a tablet to fine-tune the mix from any seat, while musicians adjust their own monitor sends from their phones. For volunteer teams, that remote control makes rehearsals faster and keeps the main engineer focused on the house mix.
The 64S also integrates tightly with Studio One and Capture software for recording, editing, and mixing, so the same console that runs Sunday services or live events can produce polished recordings and broadcast mixes.
PreSonus StudioLive 64S Specifications at a Glance
- Mixing channels: 76
- Mix buses: 43 total
- Mic preamps: 32 recallable XMAX Class A
- FlexMixes: 32 (aux, subgroup, or matrix)
- DCAs: 24
- Analog FlexMix outputs: 16
- USB recording: 64×64
- SD recorder: 34×34 with Virtual Soundcheck
- Networking: AVB
Who Buys the PreSonus StudioLive 64S
- Large churches and houses of worship with full bands and broadcast needs
- Performing arts centers, theaters, and schools
- Production companies and rental houses
- Venues that need a networked system with stage boxes and personal monitoring
Why Buy the PreSonus StudioLive 64S From Metro Sound & Lighting
Metro Sound & Lighting isn’t a catalog-only retailer. We design, install, and service sound systems in-house, so we can plan a complete StudioLive system for your space, including stage boxes, personal monitoring, networking, and speakers, then train your team and support it long after installation. We offer B2B and integrator pricing for churches, schools, and venues.
Browse more options in our Digital Mixers category, or see the full specifications on the official PreSonus StudioLive 64S product page.
Additional information
| Mixing Channels | 76 |
|---|---|
| Mix Buses | 43 |
| Mic Preamps | 32 Recallable XMAX Class A |
| FlexMixes / DCAs | 32 / 24 |
| Recording | 64×64 USB, 34×34 SD Card |
| Networking | AVB |
