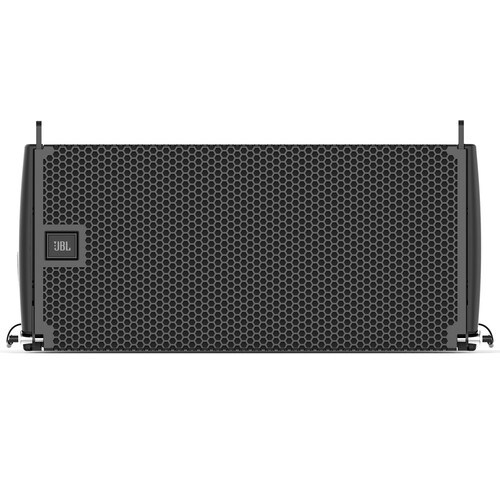

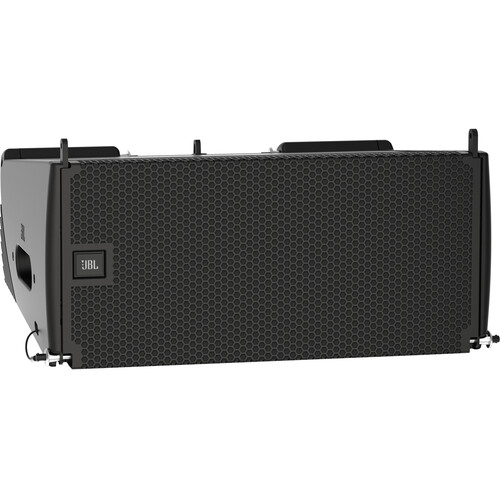

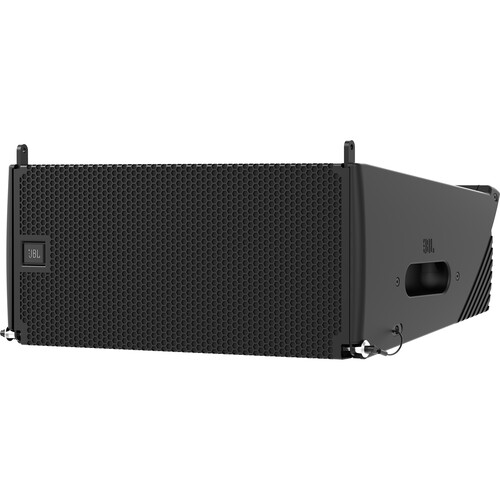

JBL SRX906LA
Two-way powered line array module with dual 6.5-inch Differential Drive woofers, 3-inch compression driver, 134 dB peak SPL, advanced DSP, and etherCON networking.
Product Details
The JBL SRX906LA is a dual 6.5-inch powered line array loudspeaker in JBL’s SRX900 Series, designed as a scalable, truck-pack friendly system for rental companies, touring artists, DJs, and installations. Built-in Class-D amplification and DSP deliver true plug-and-play performance, with dual 6.5-inch neodymium Differential Drive woofers and a 3-inch compression driver producing 63 Hz-17 kHz at up to 134 dB peak SPL.
Highlights
- Dual 6.5-inch Differential Drive woofers and 3-inch compression driver
- 63 Hz-17 kHz frequency response; 134 dB peak SPL
- Radiation Boundary Integrator acoustic design adapted from JBL VTX
- DSP with 24 user filters, 2000 ms delay, array size compensation, and FIR throw-distance correction
- Dual etherCON Ethernet ports; HARMAN HControl support

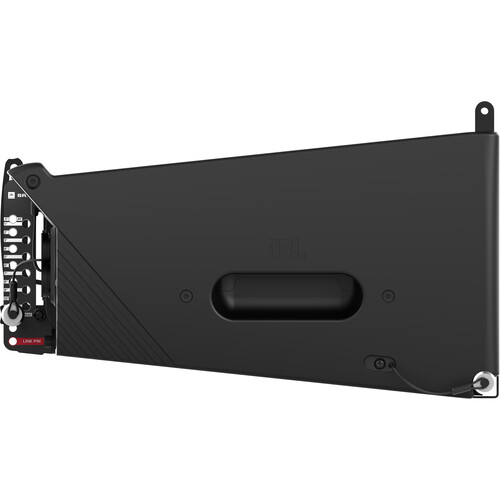

- Composite enclosure with three-point rigging system
JBL SRX906LA: Tour-Class Line Array, Compact Format
The SRX906LA brings technology from JBL’s flagship VTX Series to a compact, affordable line array module. At the heart of its acoustic design is JBL’s Radiation Boundary Integrator, which mounts both high- and low-frequency drivers on a single horn to improve horizontal directivity while reducing cabinet size. Precisely placed low-frequency apertures integrate the three symmetrically mounted drivers seamlessly.
Powerful Onboard Processing

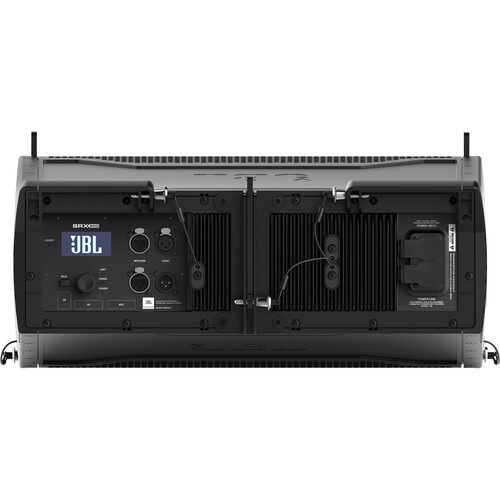

Integrated amplification and DSP are packaged specifically for the SRX900 Series. The DSP includes 24 user-adjustable filters, 2000 ms of delay, array size compensation, and FIR-based throw distance correction. LevelMax limiting uses excursion-control algorithms to protect transducers, and a rear-panel LCD provides complete access to control features. Software for Windows, Mac, and iPad offers full system control.
Setting Up the SRX906LA
Model your array in JBL’s software to determine the number of boxes and splay angles. Fly the array with the three-point rigging system or ground-stack it on SRX900 subwoofers. Connect audio, power, and Ethernet via the dual etherCON ports, then apply array size compensation and throw distance correction for your venue. Walk the room during soundcheck to fine-tune.
What to Pair With the SRX906LA
Pair the SRX906LA with JBL SRX900 Series subwoofers, the matching array frame and rigging accessories, an Ethernet switch for network control, and transport carts to protect the modules on the road.
Why Choose a Powered Line Array?
Powered line arrays build amplification and DSP into every box, eliminating amplifier racks and long speaker cable runs. Line arrays also maintain more consistent level and tone over distance than point-source speakers, so the back of the room hears nearly the same mix as the front. For rental companies and venues, that means faster setups and more predictable results.
Scalable SRX900 System
The SRX900 Series is a complete system of speakers, subwoofers, accessories, and software designed to work together and with other JBL tour sound products. Start with a small array and add boxes over time; common voicing targets and phase characteristics ensure everything combines coherently as your system grows.
JBL SRX906LA FAQ
Is the SRX906LA powered? Yes. It has built-in, passively cooled Class-D amplification and DSP with a universal power supply.
Can I control it over a network? Yes. Dual etherCON Ethernet ports support network control, including HARMAN HControl.
JBL SRX906LA Specifications at a Glance
- Type: two-way powered line array module
- Drivers: 2 x 6.5-inch Differential Drive woofers, 3-inch compression driver
- Frequency response: 63 Hz-17 kHz
- Max SPL: 134 dB peak
- DSP: 24 filters, 2000 ms delay, array size compensation, FIR throw correction
- Network: dual etherCON, HARMAN HControl
- Enclosure: composite; three-point rigging
Who Buys the JBL SRX906LA
- Rental and production companies
- Touring artists
- Performing arts centers and churches
- Installations needing scalable line arrays
Why Buy the JBL SRX906LA From Metro Sound & Lighting
Metro Sound & Lighting isn’t a catalog-only retailer. We design, install, and service sound systems in-house, so our team can design your array, handle rigging, and support your system after the sale. We offer B2B and integrator pricing for churches, schools, and venues.
Browse more options in our Powered Line Array category, or see the full specifications on the official JBL SRX906LA product page.
Additional information
| Type | 2-Way Powered Line Array |
|---|---|
| Drivers | 2 x 6.5 in. + 3 in. Compression |
| Frequency Response | 63 Hz – 17 kHz |
| Max SPL | 134 dB Peak |
| DSP | 24 Filters, 2000 ms Delay, FIR |
| Network | Dual etherCON, HControl |
