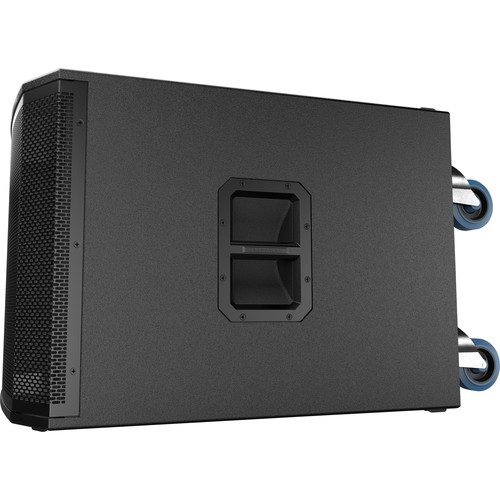

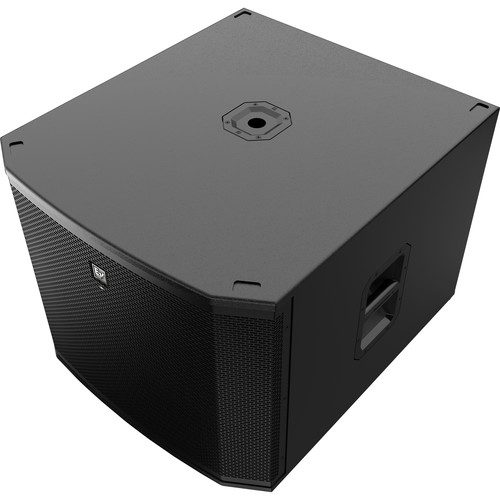

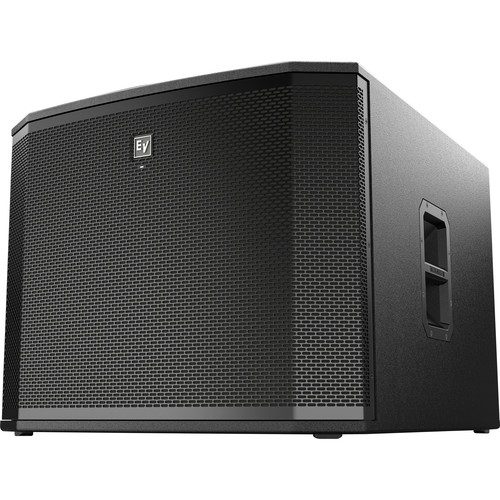

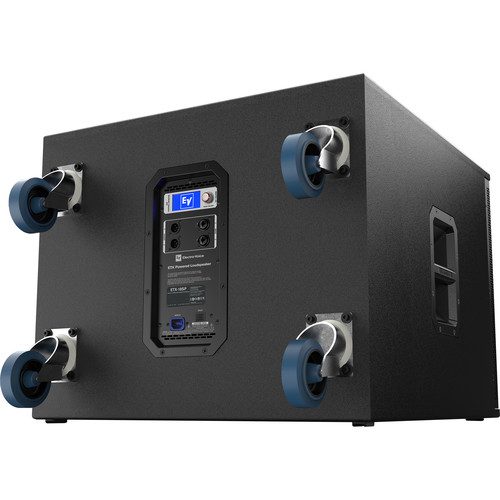

Electrovoice ETX18SP

The Electro-Voice ETX-18SP is a professional 18-inch powered subwoofer built to deliver deep, powerful bass for live sound, DJs, and installations. An 1800 W Class-D amplifier with integrated FIR-Drive DSP drives an 18-inch DVX woofer to 135 dB peak SPL, reaching down to 28 Hz with tight, controlled low end and cardioid presets for advanced bass management.

Highlights

• 18-inch DVX woofer
• 1800 W Class-D amplifier with integrated FIR-Drive DSP
• 135 dB peak SPL
• Frequency response: 33-150 Hz (-3 dB), 28-180 Hz (-10 dB)
• Adjustable low-pass filter: 80, 100, 120, or 150 Hz
• Cardioid DSP presets; 18 mm birch plywood enclosure with EVCoat finish

Electro-Voice ETX-18SP: Serious Low End

When you need bass that you can feel across a dance floor or a concert audience, an 18-inch subwoofer is the tool for the job. The ETX-18SP combines a high-output DVX woofer with a powerful 1800 W amplifier and EV’s FIR-Drive DSP, which optimizes the response for tight, accurate bass rather than boomy, uncontrolled low end. Protection limiters keep the system safe when pushed hard.

The rugged birch plywood enclosure with EVCoat finish is built to withstand the rigors of touring and rental use.

ETX-18SP DSP and Cardioid Presets

The onboard DSP lets you choose the low-pass crossover point to match your main speakers and select presets for different applications. Cardioid presets allow multiple ETX-18SP subwoofers to be arranged so bass is directed toward the audience and reduced behind the subs, which keeps stages quieter and reduces bass buildup on the performers.

Setting Up the ETX-18SP

Place subwoofers on the floor at the front of the stage, ideally in a center cluster or stacked on each side. Feed your mixer outputs into the sub, then send the sub’s outputs to your full-range speakers, setting the low-pass filter to blend with the tops. For larger events, use multiple subs in a cardioid arrangement to control bass on stage.

What to Pair With the ETX-18SP

Pair the ETX-18SP with Electro-Voice ETX full-range speakers such as the ETX-12P or ETX-15P for a matched system. A padded ETX-18SP cover protects the finish in transport, and a speaker pole lets you mount a top speaker above the sub. Quality XLR cables complete the setup.

How Many Subwoofers Do You Need?

For speech and acoustic music, one ETX-18SP per side, or a single center sub, is often plenty. For DJs and dance events, a common starting point is one 18-inch subwoofer for each full-range speaker. Larger rooms and outdoor events benefit from multiple subs, which can be arranged in cardioid configurations to keep bass off the stage. Our team can help you estimate the right number for your venue and audience size.

Electro-Voice ETX-18SP FAQ

How low does the ETX-18SP go? It reaches 33 Hz at -3 dB and 28 Hz at -10 dB.

What are cardioid presets for? They let multiple subs be arranged to direct bass forward and reduce it behind the subwoofers, keeping stages quieter.

Electro-Voice ETX-18SP Specifications at a Glance

• Driver: 18-inch DVX woofer
• Amplifier: 1800 W Class-D with FIR-Drive DSP
• Peak SPL: 135 dB
• Frequency response: 33-150 Hz (-3 dB); 28-180 Hz (-10 dB)
• Low-pass filter: 80, 100, 120, 150 Hz
• Enclosure: 18 mm birch plywood with EVCoat
• Weight: 51.8 kg (114.2 lb)
• Dimensions: 550 x 675 x 910 mm

Who Buys the Electro-Voice ETX-18SP

• Production and rental companies
• Mobile DJs and club installations
• Bands and live music venues
• Churches with contemporary worship
