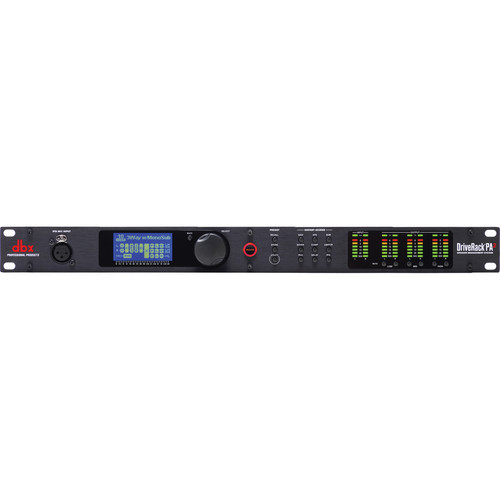

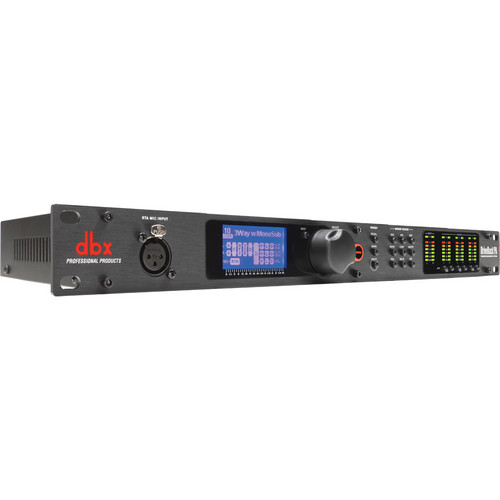

dbx DriveRack PA2

The dbx DriveRack PA2 is a complete loudspeaker management system that sits between your mixer and amplifiers or powered speakers to optimize and protect your PA. With two inputs, six outputs, automatic room EQ, feedback suppression, crossovers, and a setup wizard, it helps bands, DJs, churches, and venues get great, consistent sound from any system.

Highlights

• 2 balanced XLR inputs and 6 balanced XLR outputs
• AutoEQ with included RTA measurement microphone input
• AFS (Advanced Feedback Suppression)
• Full-range, 2-way, and 3-way crossovers with alignment delay
• Setup Wizard with speaker tunings, dbx compression and limiting, and subharmonic synthesis
• Control via Ethernet or USB from Android, iOS, Mac, and Windows

dbx DriveRack PA2: Better Sound, Less Guesswork

Every room and speaker system sounds different, and tuning a PA by ear takes experience. The DriveRack PA2 automates much of the process. Its Setup Wizard walks you through configuring your speakers and amps, AutoEQ measures the room with a microphone and applies corrective EQ, and AFS identifies and notches out feedback frequencies so you can turn the system up with confidence.

Built-in limiters protect your speakers from damage, and crossovers send the right frequencies to subwoofers and tops for a cleaner, louder system.

DriveRack PA2 Processing

The PA2 includes graphic and parametric EQ, dbx compression and limiting, subharmonic synthesis for extra low end, input delay, and output alignment delay to time-align subs and tops. Control everything from the front panel or connect over Ethernet or USB and use the app on a tablet, phone, or computer to make changes from anywhere in the room.

Setting Up the DriveRack PA2

Connect your mixer’s main outputs to the PA2’s inputs and its outputs to your amplifiers or powered speakers. Run the Setup Wizard to select your speaker and amp configuration, then place an RTA microphone in the audience area and run AutoEQ. Finally, run AFS with the microphones on stage to suppress feedback before the show.

What to Pair With the DriveRack PA2

Pair the DriveRack PA2 with a measurement microphone, a rack case, quality XLR cables, and your speakers and amplifiers. A tablet running the control app makes room tuning much faster.

Why Use a Loudspeaker Management System?

Without system processing, PAs often sound boomy, harsh, or uneven, and speakers can be damaged when pushed too hard. A loudspeaker management system corrects the room, divides frequencies properly between subs and tops, time-aligns speakers, and limits output to safe levels. The result is clearer, louder, more consistent sound and a longer-lasting PA.

dbx DriveRack PA2 FAQ

Do I need a measurement microphone? For AutoEQ, yes. The PA2 has an RTA mic input for room measurement.

Can I control it remotely? Yes. Connect over Ethernet or USB and use the control app on Android, iOS, Mac, or Windows.

dbx DriveRack PA2 Specifications at a Glance

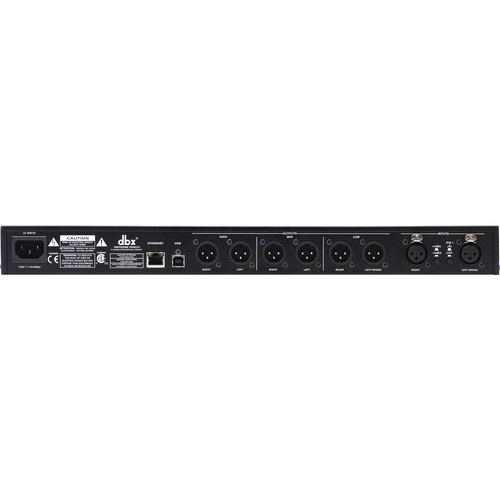

• Inputs: 2 balanced XLR, plus RTA mic input
• Outputs: 6 balanced XLR
• Processing: 24-bit converters, 32-bit floating-point DSP, 48 kHz
• Features: AutoEQ, AFS, crossovers, graphic and parametric EQ, compression, limiting, subharmonic synthesis
• Delay: input and output alignment delay
• Control: front panel, Ethernet, USB
• Format: 1U rackmount

Who Buys the dbx DriveRack PA2

• Bands and mobile DJs
• Churches and houses of worship
• Small venues and bars
• Rental and production companies

Why Buy the dbx DriveRack PA2 From Metro Sound & Lighting

Metro Sound & Lighting isn’t a catalog-only retailer. We design, install, and service sound systems in-house, so our team can set up and tune your DriveRack PA2 for your room and support it after the sale. We offer B2B and integrator pricing for churches, schools, and venues.

Browse more options in our Processors category, or see the full specifications on the official dbx DriveRack PA2 product page.
