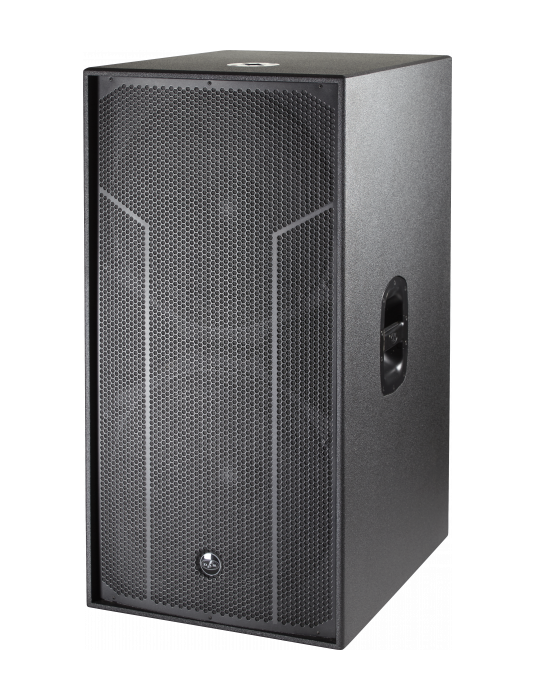

DAS ACTION S218A

The DAS Audio ACTION-S218A is a powered dual 18-inch subwoofer that adds deep, powerful bass to any PA. Two specialty 18FW4 drivers with 3-inch double-layer voice coils and forced-convection cooling are driven by a 3200-watt peak Class-D amplifier, reaching 140 dB with response down to 35 Hz. A variable low-pass filter, switchable high-pass outputs for your tops, and LOUD and DEEP presets make it easy to integrate with DAS ACTION speakers or any full-range system.

Highlights

• Dual 18-inch 18FW4 drivers in a bass-reflex enclosure
• 3200W peak Class-D amplifier
• 140 dB max SPL; 35-125 Hz range
• Variable 63-100 Hz low-pass filter
• Switchable 100 Hz high-pass on stereo thru outputs for tops
• LOUD and DEEP presets, polarity reverse, and powerCON thru

DAS Audio ACTION-S218A: Serious Low End

With two 18-inch drivers and 3200 watts of peak power, the ACTION-S218A delivers the chest-thumping bass that dance music, live bands, and large events demand. Forced-convection voice coil cooling reduces power compression, so the sub stays clear and punchy at high output.

Easy System Integration

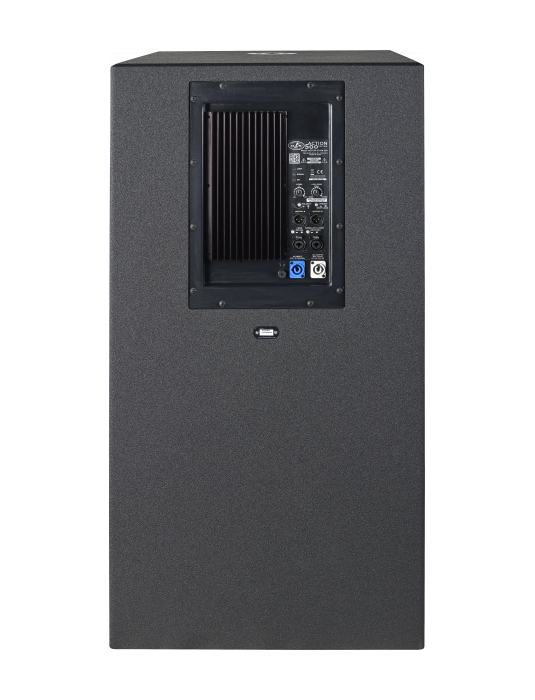

Two combo inputs feed the sub, and two XLR thru outputs pass the signal to your tops with an optional 100 Hz high-pass filter, so full-range speakers are relieved of deep bass for cleaner mids. A variable low-pass filter from 63 to 100 Hz lets you dial in the crossover point for your system.

Setting Up the ACTION-S218A

Place the subwoofer on the floor near the front of the stage. Connect your mixer to the inputs, engage the high-pass filter, and connect the thru outputs to your tops. Choose LOUD for an even bass response or DEEP for a boost at 50 Hz, set the low-pass filter, and adjust level and polarity for the best blend with your tops.

What to Pair With the ACTION-S218A

Pair the ACTION-S218A with DAS ACTION-508A, -512A, -515A, or -525A powered speakers, XLR cables, powerCON cables for daisy-chaining power, and a dolly or wheel board for transport.

Daisy-Chain Power and Signal

A powerCON input and thru output let you daisy-chain power to up to four subwoofers, and the XLR thru outputs simplify signal routing across multiple subs and tops.

Rugged Construction

A birch plywood enclosure with durable ISO-flex paint is built for touring, rental, and permanent installation.

Purchasing Note

The ACTION-S218A is not available for online purchase. Contact Metro Sound & Lighting for pricing, availability, and system design help.

Subwoofer Placement Tips

Placing subs on the floor near a wall or stage edge reinforces bass, while corners add even more output but can sound boomy. Keep multiple subs grouped together for even coverage, and walk the room during soundcheck to find the smoothest response.

DAS Audio ACTION-S218A FAQ

Can I connect my tops through the sub? Yes. Use the XLR thru outputs with the 100 Hz high-pass engaged.

How many subs can share power? Up to four, using the powerCON thru connector.

DAS Audio ACTION-S218A Specifications at a Glance

• Type: powered dual 18-inch bass-reflex subwoofer
• Drivers: 2 x 18FW4 (3-inch voice coils)
• Amplifier: 3200W peak Class-D
• Frequency range: 35-125 Hz (variable LPF)
• Max SPL: 140 dB
• Inputs/outputs: 2 combo in, 2 XLR thru (HPF switchable)
• Weight: 133.4 lbs (60.5 kg)

Who Buys the DAS Audio ACTION-S218A

• Bands and DJs
• Clubs and event venues
• Rental and production companies
• Churches with contemporary worship

Why Buy the DAS Audio ACTION-S218A From Metro Sound & Lighting

Metro Sound & Lighting isn’t a catalog-only retailer. We design, install, and service sound systems in-house, so our team can design and install your PA and support it after the sale. We offer B2B and integrator pricing for churches, schools, and venues.

Browse more options in our Powered Subwoofers category, or see the full specifications on the official DAS Audio ACTION-S218A product page.
