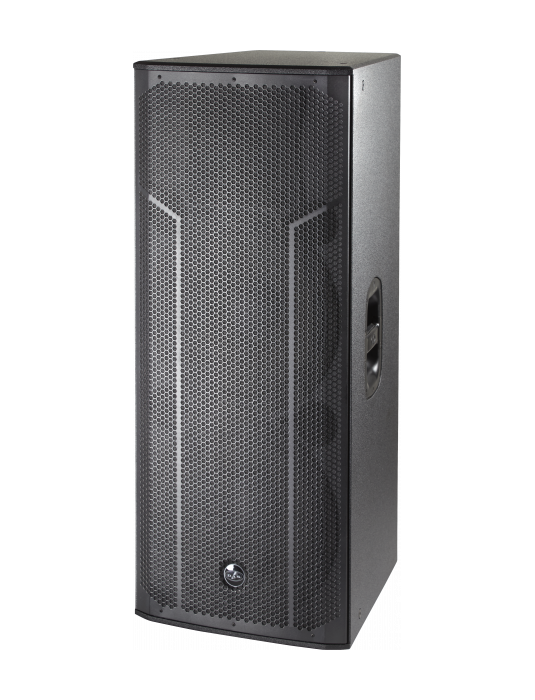

DAS ACTION 525A

The DAS Audio ACTION-525A is a powered dual 15-inch two-way PA speaker that delivers big output and deep bass for bands, DJs, houses of worship, and event venues. A 1000-watt peak Class-D bi-amplifier drives two 15-inch woofers and a compression driver on a rotatable horn, reaching 134 dB with bass down to 45 Hz. Onboard DAScontrol DSP with presets, a 3-input mixer, and a birch plywood cabinet make it a rugged, versatile choice for mid-size spaces.

Highlights

• Dual 15-inch woofers and compression driver
• 1000W peak (500W continuous) Class-D bi-amplifier
• 134 dB max SPL; 45 Hz-20 kHz (-10 dB)
• 90 x 60 degree rotatable horn
• DAScontrol DSP with LIVE, DANCE, and MONITOR presets
• 2 combo inputs, 3.5 mm aux, and XLR thru output

DAS Audio ACTION-525A: Dual 15-Inch Power

Two 15-inch woofers give the ACTION-525A a deep, full low end that many single-woofer speakers can’t match, making it a strong choice for live bands and dance music without a separate subwoofer. The rotatable horn delivers consistent 90 x 60 degree coverage whether the cabinet is upright or on its side.

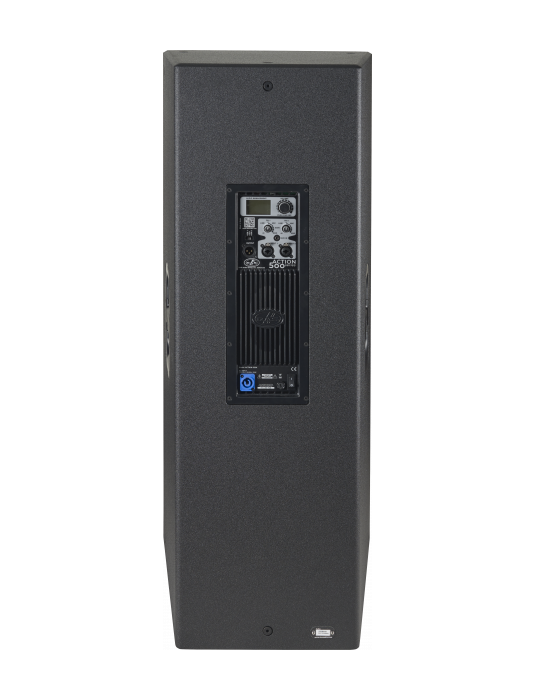

DAScontrol DSP

An LCD interface provides input and output meters with clip and limit indicators, factory presets for live sound, dance music, and monitoring, a high-pass filter for use with subwoofers, and up to 9.9 meters of delay for aligning fill speakers.

Setting Up the ACTION-525A

Place or fly the speaker using its rigging points, connect microphones or a mixer to the two combo inputs, and connect a phone or media player to the 3.5 mm aux input. Choose a preset, set levels with the gain controls, and use the XLR thru output to link another speaker. Use two units for true stereo.

What to Pair With the ACTION-525A

Pair the ACTION-525A with the DAS ACTION-S218A powered subwoofer for extra low end, a compact mixer, vocal microphones, XLR cables, and powerCON power cables.

Built-In 3-Input Mixer

Individual gain controls on inputs 1 and 2, plus the aux input, let the speaker work as a simple 3-channel mixer for presentations or singer-songwriter gigs. An output routing switch sends input 1, input 2, or the mix to the thru output.

Rugged Construction

A trapezoidal birch plywood enclosure with durable ISO-flex paint stands up to touring and rental use, while integrated rigging points support flown installations.

Purchasing Note

The ACTION-525A is not available for online purchase. Contact Metro Sound & Lighting for pricing, availability, and system design help.

Ideal Applications

The ACTION-525A suits live sound reinforcement, bands and DJs, speech and vocals, music playback in entertainment venues, and A/V for conferences and presentations.

DAS Audio ACTION-525A FAQ

Does it need a subwoofer? Its dual 15-inch woofers deliver deep bass on their own, but a sub adds extra impact for dance music.

Is it stereo? Each speaker is mono; use two for stereo.

DAS Audio ACTION-525A Specifications at a Glance

• Type: powered 2-way, dual 15-inch
• Amplifier: 1000W peak, 500W continuous Class-D
• Frequency range: 45 Hz-20 kHz (-10 dB)
• Max SPL: 134 dB
• Coverage: 90 x 60 degrees (rotatable horn)
• Inputs: 2 XLR/TRS combo, 3.5 mm aux
• Weight: 87.1 lbs (39.5 kg)

Who Buys the DAS Audio ACTION-525A

• Bands and DJs
• Churches and houses of worship
• Event and rental companies
• Bars, clubs, and venues

Why Buy the DAS Audio ACTION-525A From Metro Sound & Lighting

Metro Sound & Lighting isn’t a catalog-only retailer. We design, install, and service sound systems in-house, so our team can design and install your PA and support it after the sale. We offer B2B and integrator pricing for churches, schools, and venues.

Browse more options in our Powered Speakers category, or see the full specifications on the official DAS Audio ACTION-525A product page.
