Chauvet DJ D-Fi XLR RX

The Chauvet DJ D-Fi XLR RX is a compact, battery-powered wireless DMX receiver that adds D-Fi wireless control to any DMX fixture. Plug it into a fixture’s DMX input, and it receives DMX or master/slave signals from a D-Fi XLR TX transmitter or D-Fi-equipped controller up to 165 feet away, so you can place fixtures anywhere without running DMX cable.

Highlights

• Plugs directly into a fixture’s XLR DMX input
• Receives DMX and master/slave signals wirelessly
• Range up to 165 ft (50 m) at 2.412-2.484 GHz
• Rechargeable battery; 5 VDC charging
• LED indicators show wireless channel status
• Ultra-light 1.6 oz design; CE, FCC, and RTTE approved

Chauvet DJ D-Fi XLR RX: Add Wireless to Any Fixture

Many fixtures in existing rigs don’t have built-in wireless DMX. The D-Fi XLR RX solves that by plugging into the fixture’s DMX input and receiving the signal over D-Fi. Use one receiver per fixture or per chain of fixtures, and eliminate the DMX cable runs between them and your controller.

Battery Powered and Compact

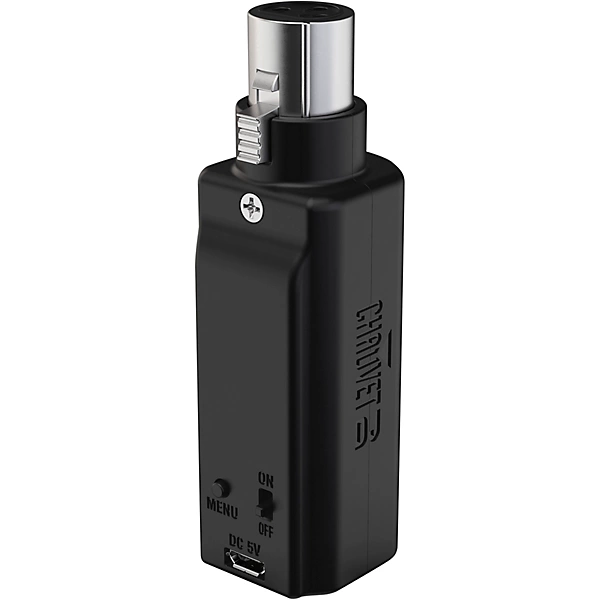

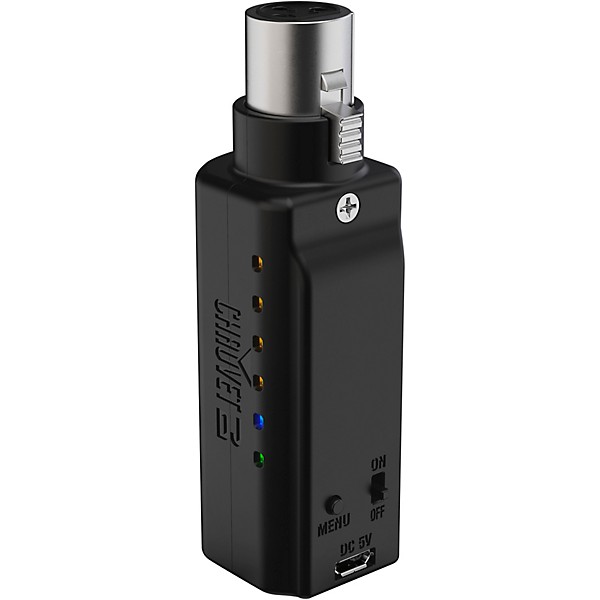

The receiver runs on its own rechargeable battery, so it needs no external power at the fixture. At just 1.6 ounces and 3.5 inches long, it hangs neatly off a fixture’s DMX port, and LED indicators confirm it’s on the right wireless channel.

Setting Up the D-Fi XLR RX

Charge the receiver fully. Plug it into the DMX input of the fixture you want to control, set it to the same wireless channel as your D-Fi XLR TX transmitter or D-Fi controller, and confirm the LED indicators. Daisy-chain additional fixtures from that fixture’s DMX output with standard cables if needed.

What to Pair With the D-Fi XLR RX

Pair the D-Fi XLR RX with a D-Fi XLR TX transmitter, a DMX controller, and the fixtures in your rig. The D-Fi XLR Pack includes one transmitter, three receivers, and a multi-charger.

When to Use Wireless Receivers

Wireless receivers are ideal for uplights spread around a room, fixtures on separate stands across a stage, and any venue where cables would cross walkways. They let you modernize older fixtures with wireless control instead of replacing them.

Reliable Wireless DMX

For best results, keep a line of sight between the transmitter and receivers, avoid placing receivers inside metal truss or against large metal objects, and charge all units before each event for consistent performance.

Charging and Care

Charge every receiver before each event, and label each one with its fixture and wireless channel for faster setup. Store receivers in a padded pouch so the XLR connectors stay undamaged, and keep one or two spares in your road case for quick swaps if a fixture loses signal mid-show.

Chauvet DJ D-Fi XLR RX FAQ

Does it need power at the fixture? No. It runs on its internal rechargeable battery.

What transmitter does it work with? The Chauvet DJ D-Fi XLR TX and other D-Fi-compatible transmitters and controllers.

Chauvet DJ D-Fi XLR RX Specifications at a Glance

• Type: wireless DMX receiver
• Frequency: 2.412-2.484 GHz
• Range: up to 165 ft (50 m)
• Connector: XLR (plugs into DMX input)
• Charging: 5 VDC, 500 mA
• Size: 3.5 x 1 x 1.14 in; weight 1.6 oz
• Approvals: CE, FCC, RTTE

Who Buys the Chauvet DJ D-Fi XLR RX

• Mobile DJs
• Event lighting companies
• Bands with their own lighting
• Venues upgrading older fixtures
